EGM-G 640×512 Thermal Imaging Scope/Clip-on/Head-M

The KPTIX EGM-G delivers professional thermal performance in a compact, lightweight package. Featuring a 640×512@12μm detector with NETD <25mK, it provides outstanding clarity for night hunting, tactical operations, and outdoor surveillance.

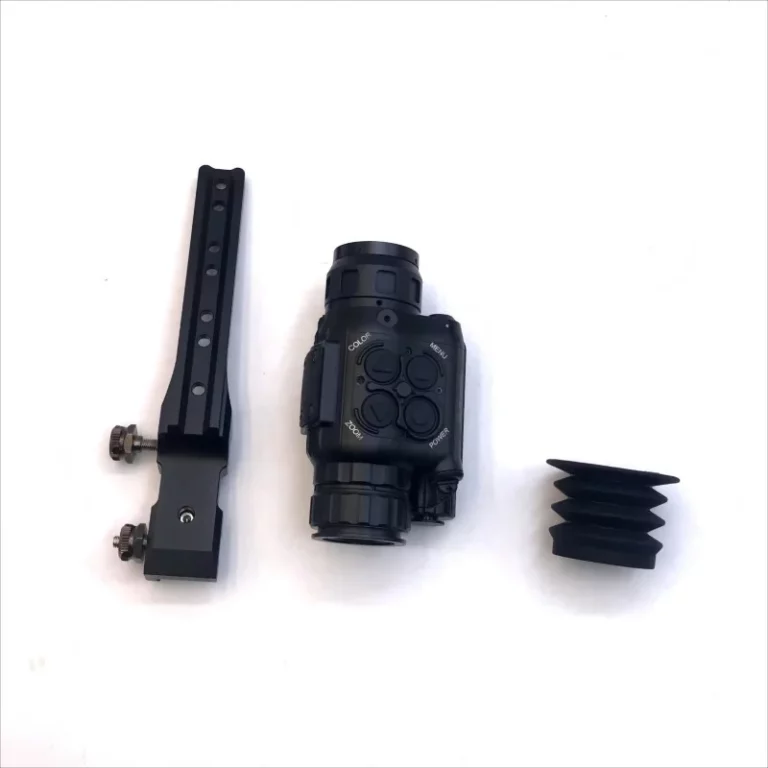

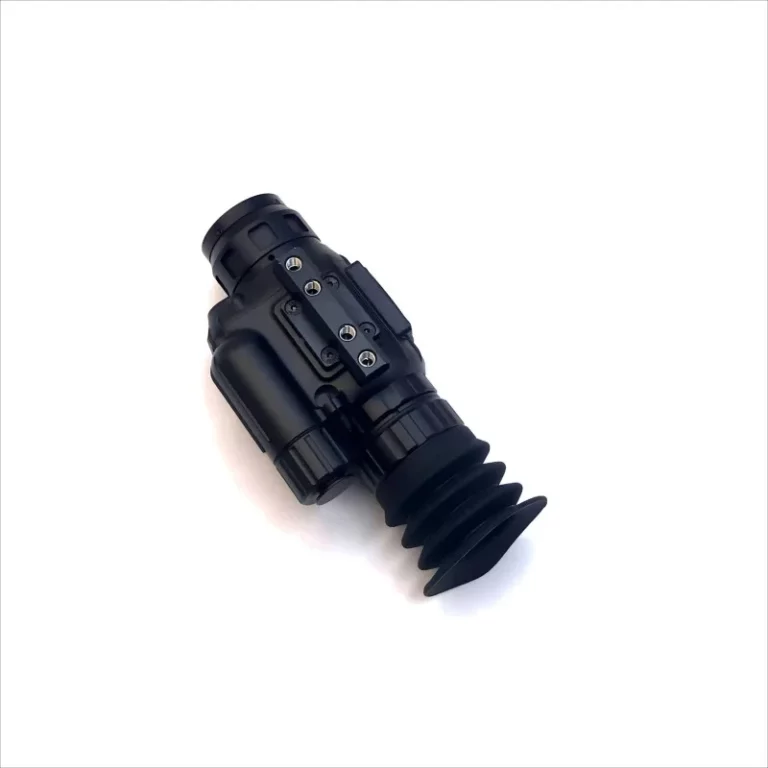

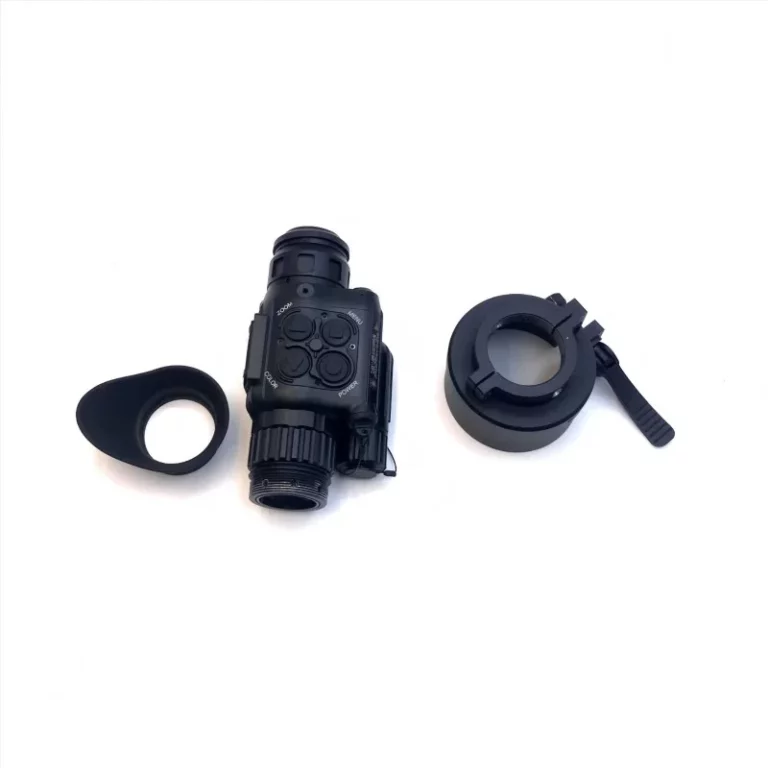

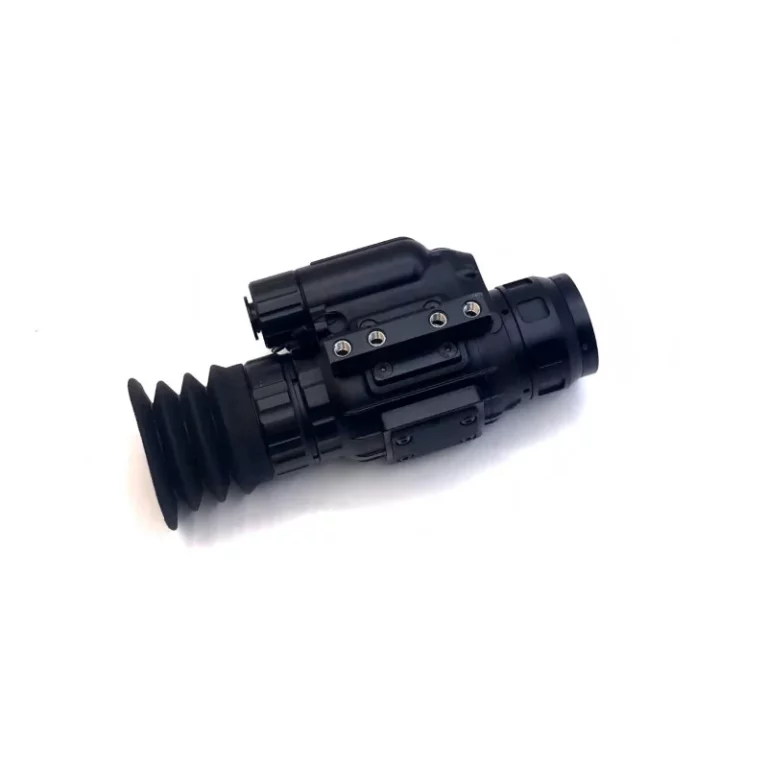

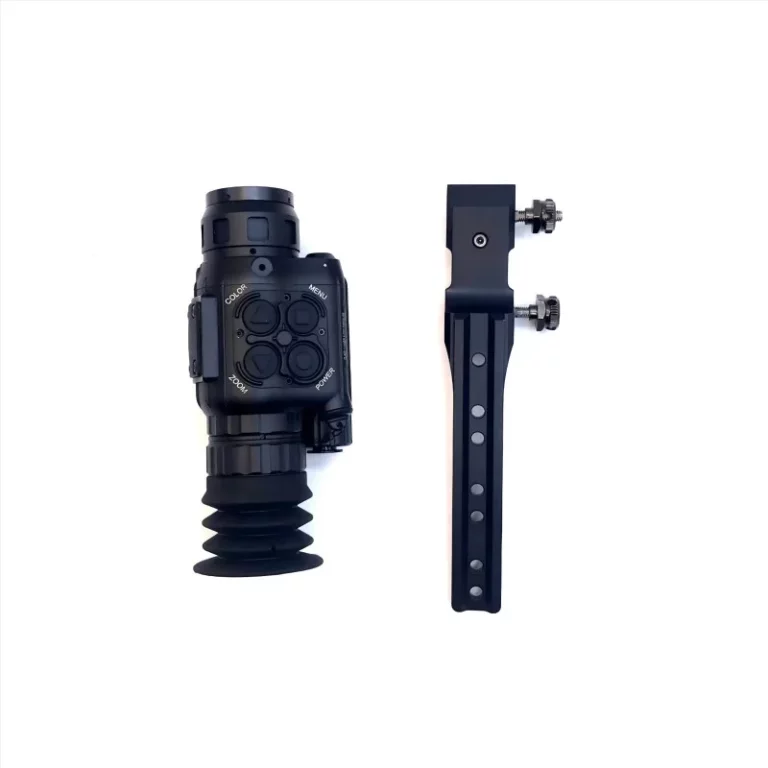

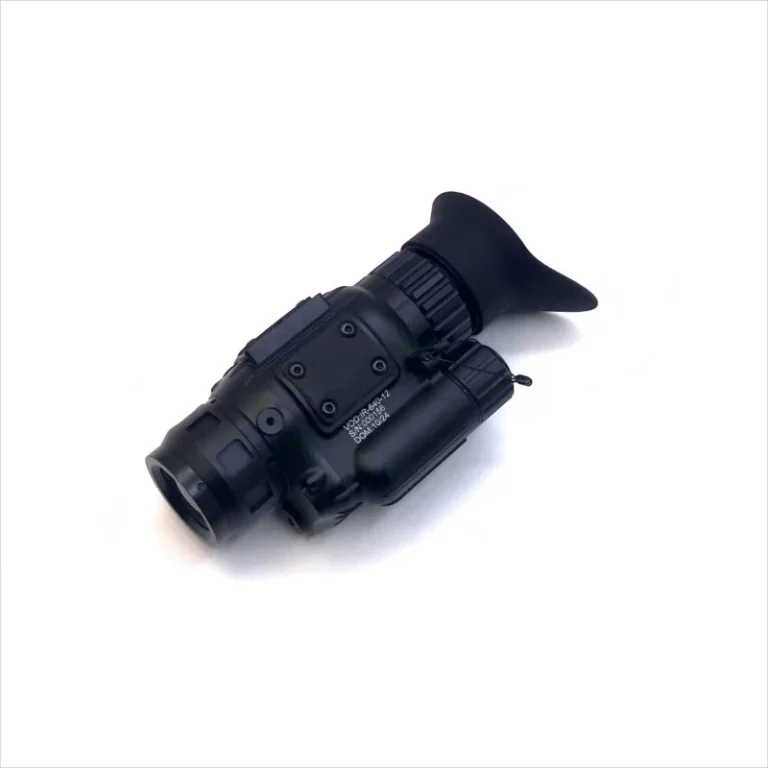

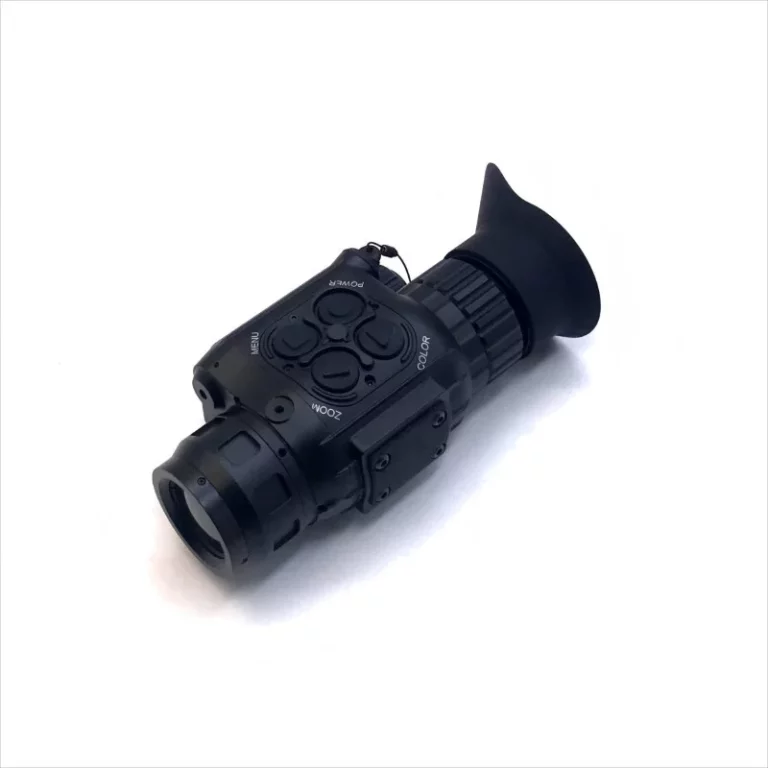

e96d5983c6f040c900957229994d9d2(1) 0ec509339a9768382fe9733d7bb502f(1) fd9044fe8507f142f56b042fe98549c(1) d59efe0e73684e26debb0a992797401(1) 22a1d0511d06fda15fe1bf4bdd4622b(1) 310ecafc90dcfe246795eddc14875e8(1) EGM-G 640x512 thermal Imaging clip-on dd564280251e6416db2f29d4bdbbd50(1) 24caa596cea52181f53bd7c6f878a12(1)

EGM-G

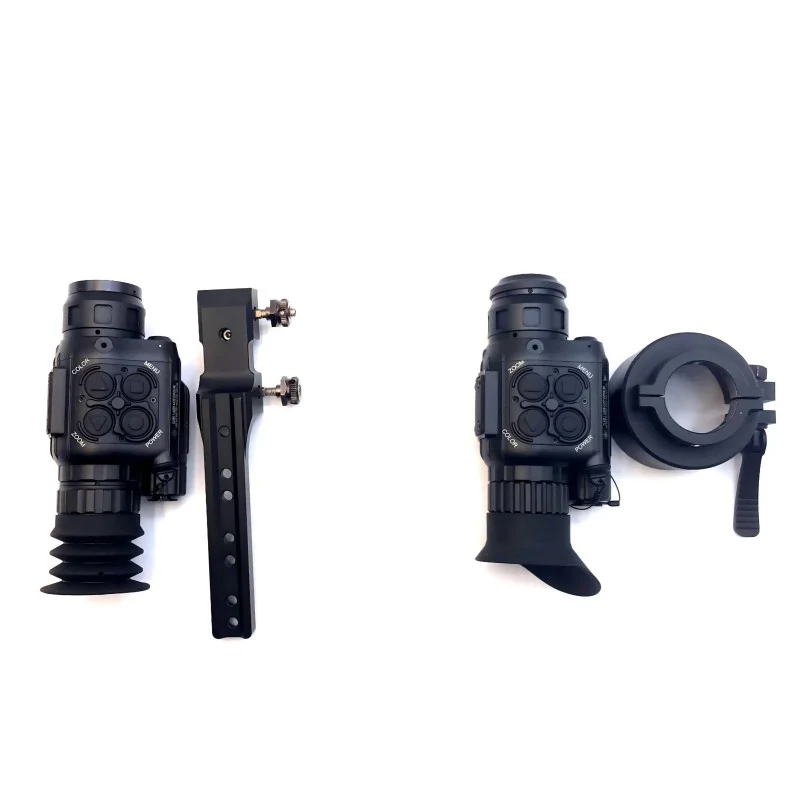

EGM-G is a high-performance thermal imaging scope that supports optical tandem use, standalone riflescope application, and head-mounted observation. It features a 640×512@12μm high-resolution infrared detector, with optional shutterless image processing technology, achieving NETD ≤20mK and a smooth 50Hz frame rate. Available with 15/25/35mm lenses, the device supports 1-8× digital zoom (including 1×, 2×, 4×), and is equipped with a 1024×768 OLED display offering multiple color palettes such as white hot, black hot, and iron red.it boasts IP67 protection and 800g shock resistance. The replaceable battery provides over 4 hours of runtime. Additional features include a laser pointer, digital compass (DMC), hot-spot auto-tracking, Picture-in-Picture (PIP), bad pixel correction, digital zeroing, user-defined ballistics, multiple reticle styles and colors, and auto/manual shutter calibration. It supports one-button photo capture and long-press video recording.Ideal for night hunting, law enforcement, border patrol, and outdoor search & rescue, the EGM-G delivers stable and reliable thermal imaging performance with excellent all-weather adaptability, lightweight design, and rich tactical functions.

Previous

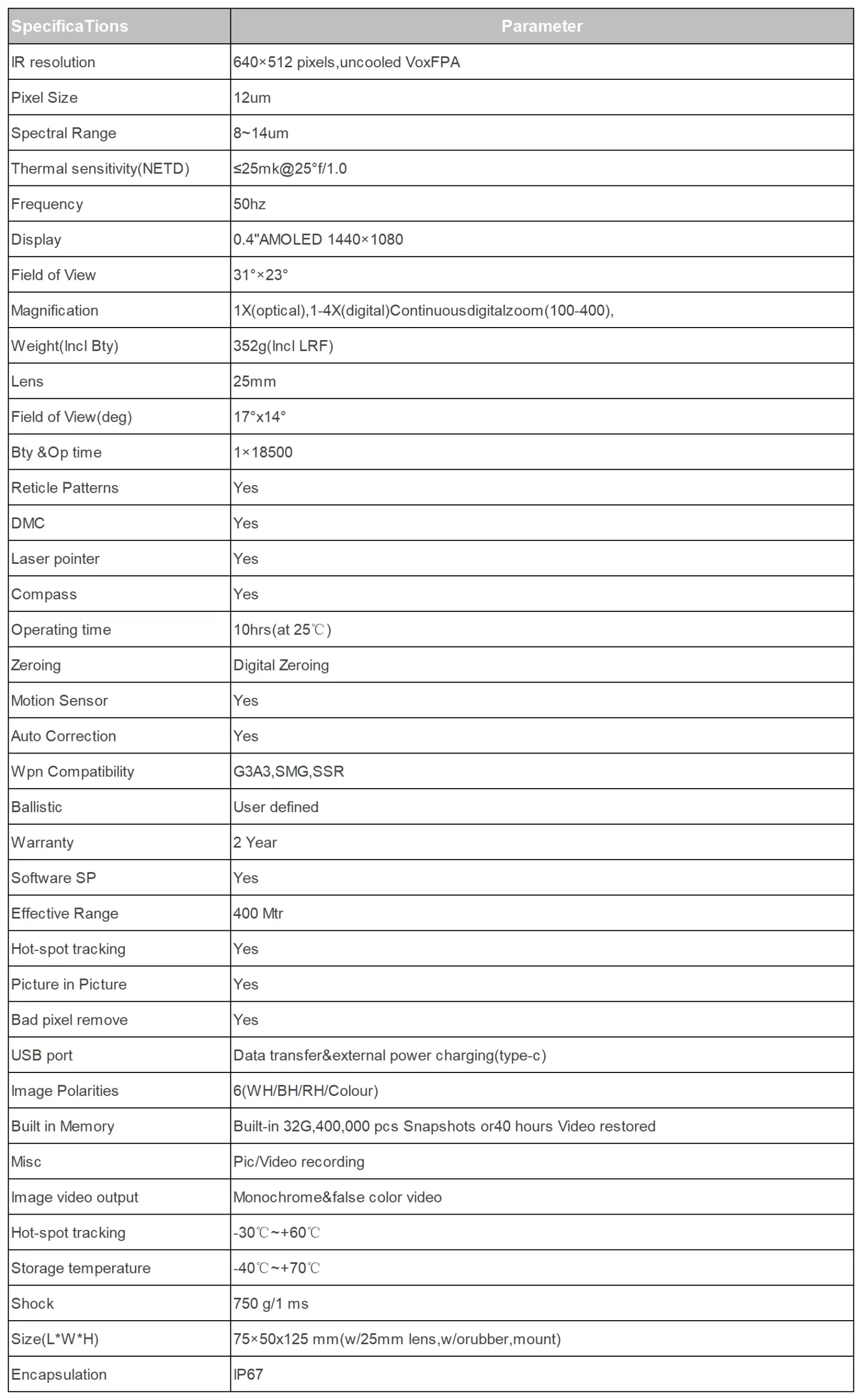

EGM-G Technical Specifications

Cores
IR resolution 640×512@12μm/(Optional shutterless)
Thermal sensitivity(NETD) ≤25mk@300k
Frequency 50hz
Lens 25mm 35mm
Field of View(deg) 17°x14° 12.6°x10.1°
Detection Range(Human) / 3310m
Detection Range(Vehicle) / 4480m
Display 0.39″ OLED 1024×768
Magnification 1X(optical),1-4X(digital)Continuousdigitalzoom
Image Polarities white hot, black hot, iron red, desert yellow,green hot, red hot, sky, edge
Power Supply
Operating time >4H
Bty &Op time 2×18500,2700mAh 2×18650
Volume
Operation Temperature -30℃~ +50℃
Reliability 800g Shock Resistance
Encapsulation IP66/(IP67)
Size(L*W*H) 118x57x58mm 140x60x60mm
Weight(Incl Bty) ≤308g
Other Information
Optional Modes Clip-on/Scope/Headwear Clip-on/Scope
Eyepiece Field of View Customizable
Eyepiece Diopter -5~+5
Eye Relief 45mm
Reticle Patterns Yes
DMC (Yes)Optional
Laser pointer (Yes)Optional
Compass (Yes)Optional
Zeroing Digital Zeroing
Motion Sensor Yes
Auto Correction Yes
Wpn Compatibility Optional
Ballistic User defined
Software SP Yes
Effective Range 400 Mtr
Hot-spot tracking Yes
Picture in Picture Yes
Bad pixel remove Yes
USB port Data transfer&external power charging(type-c)
Built in Memory Built-in 32G,400,000 pcs Snapshots or40 hours Video restored
Misc (Pic/Video recording)Optional
Image video output Monochrome&false color video
Altitude ≥ 5000m
Adaptability All-weather
