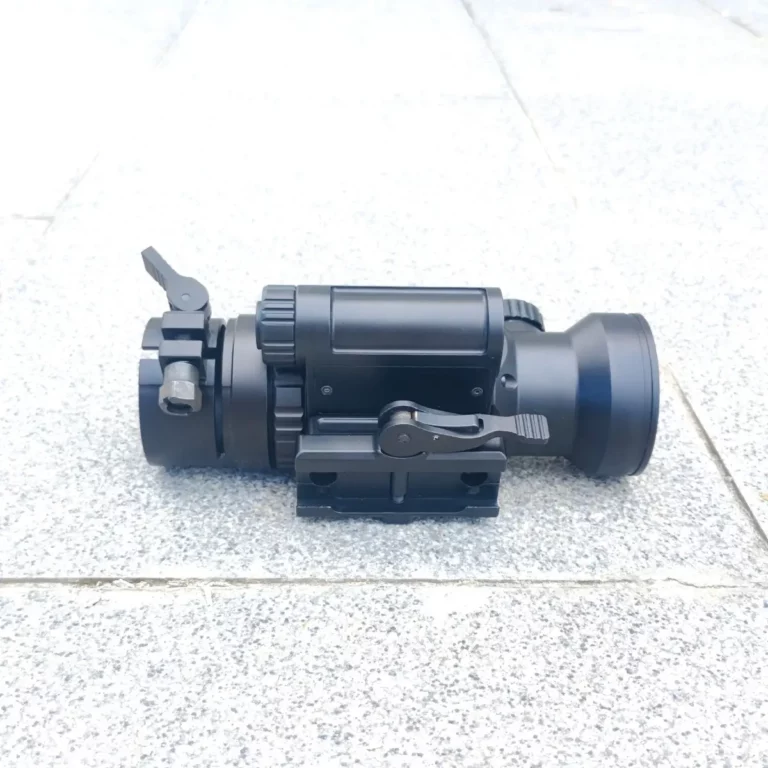

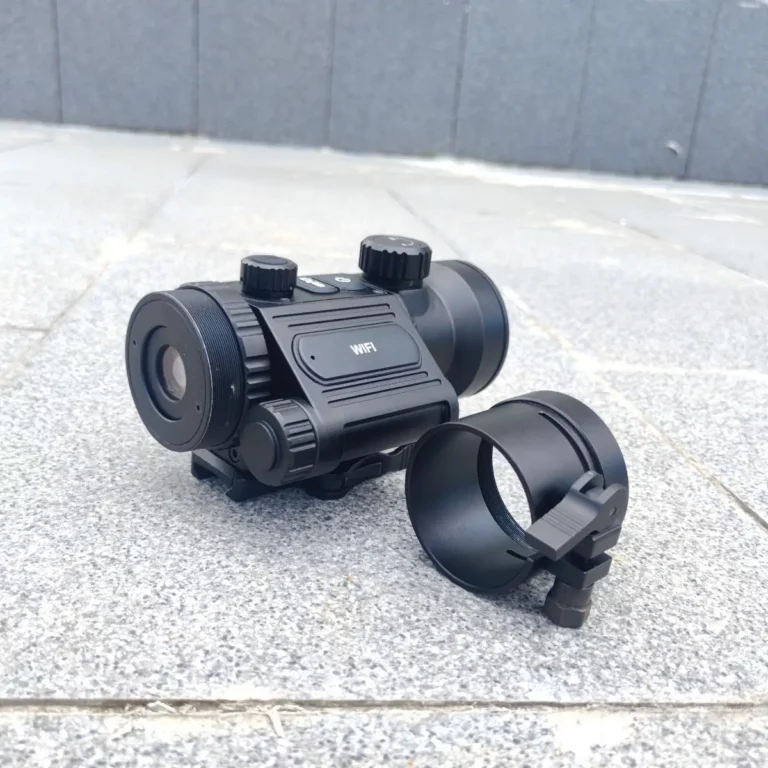

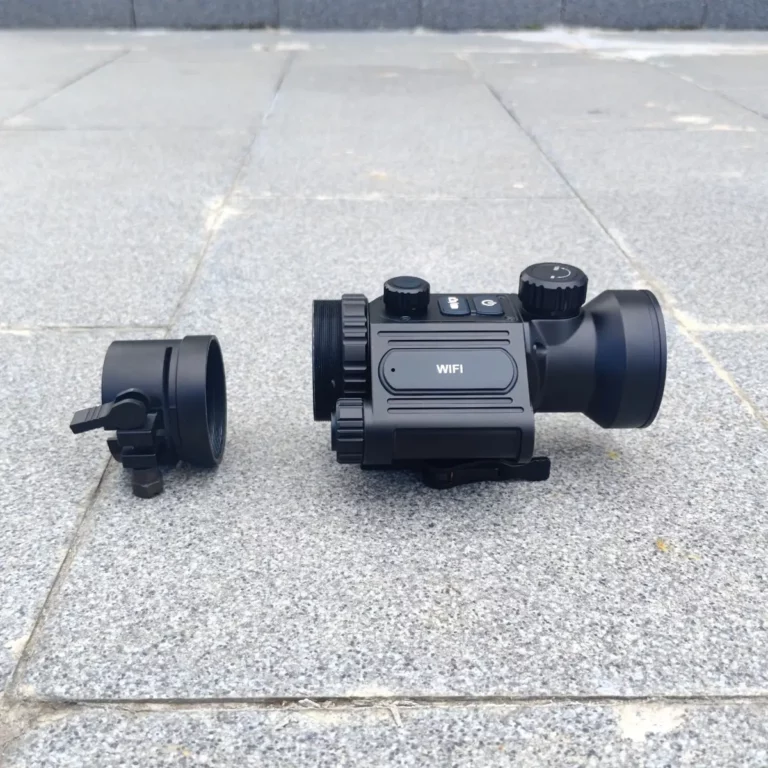

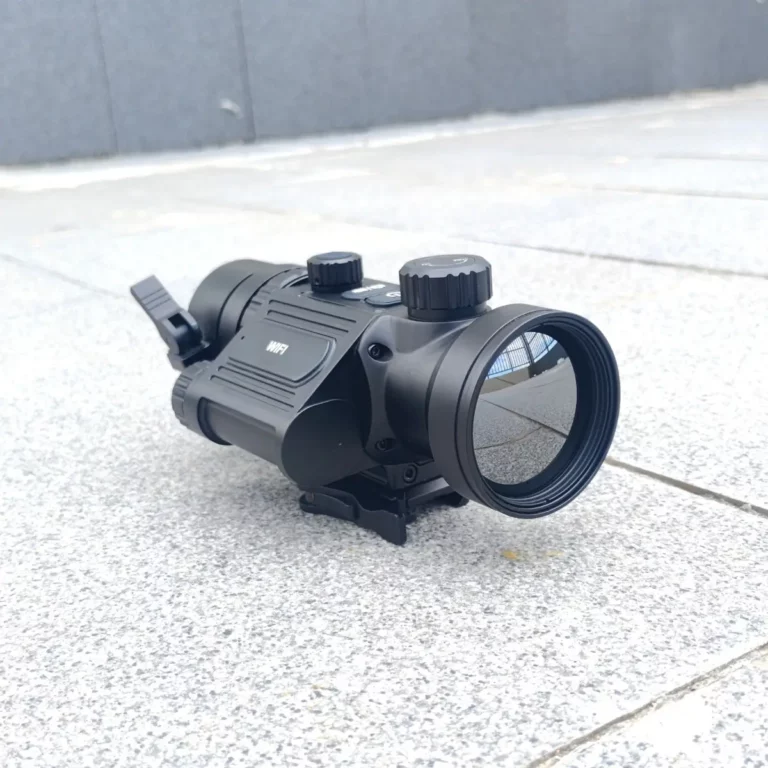

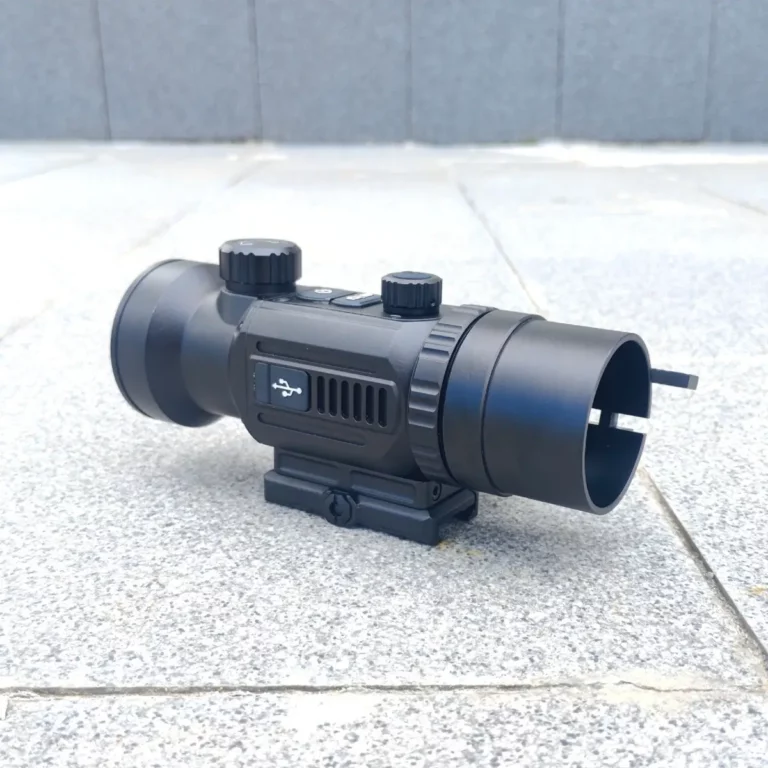

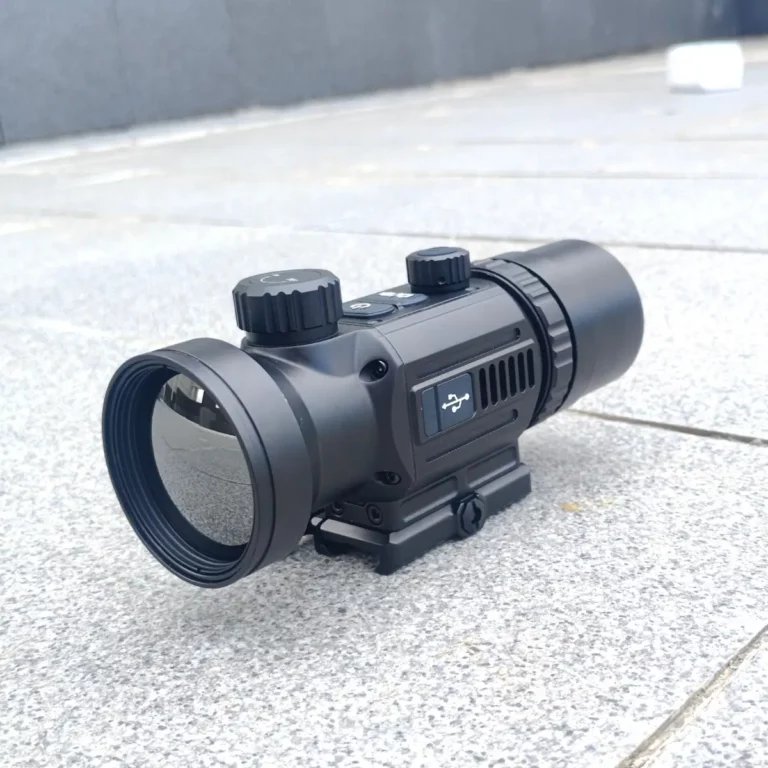

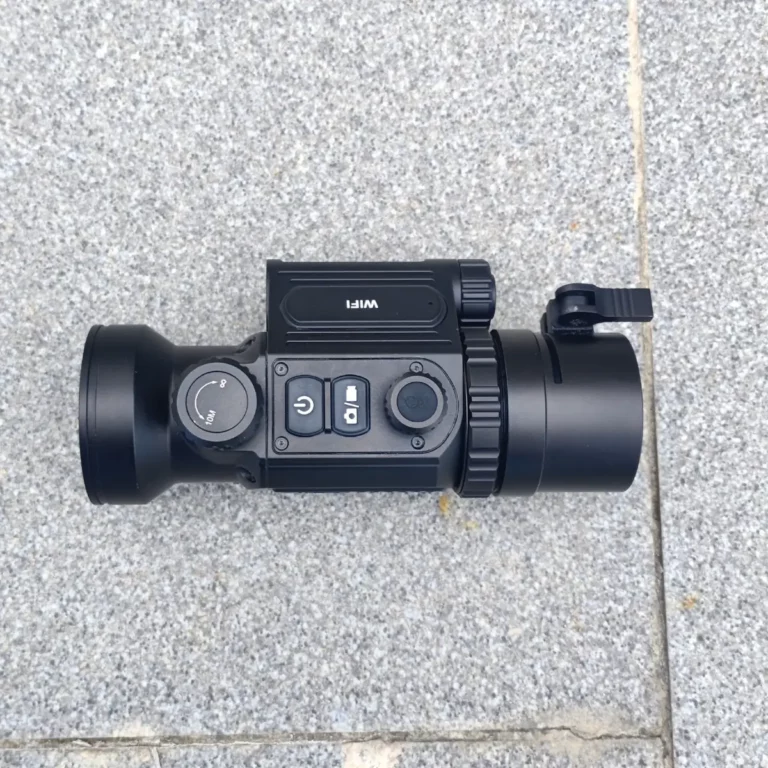

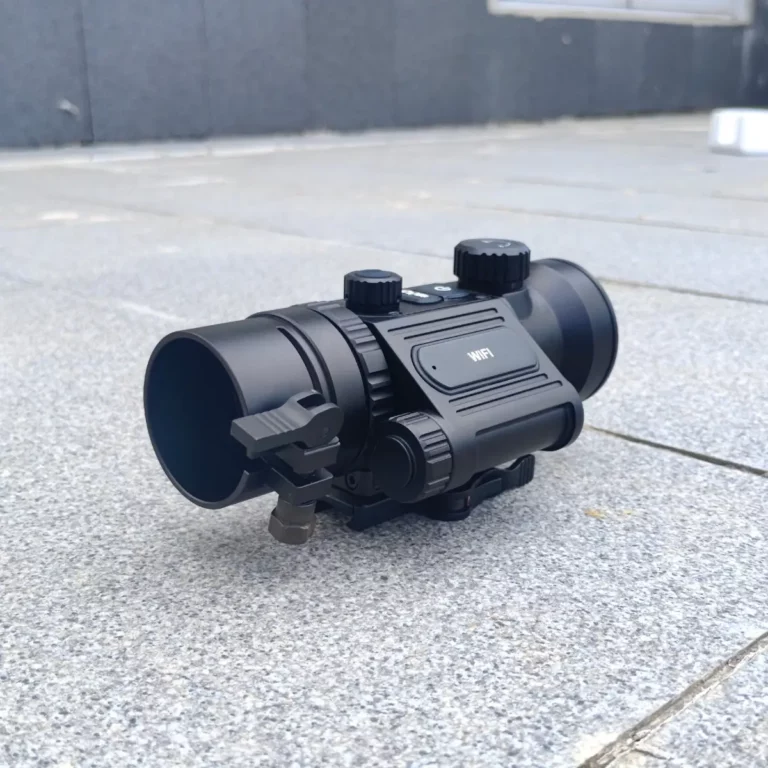

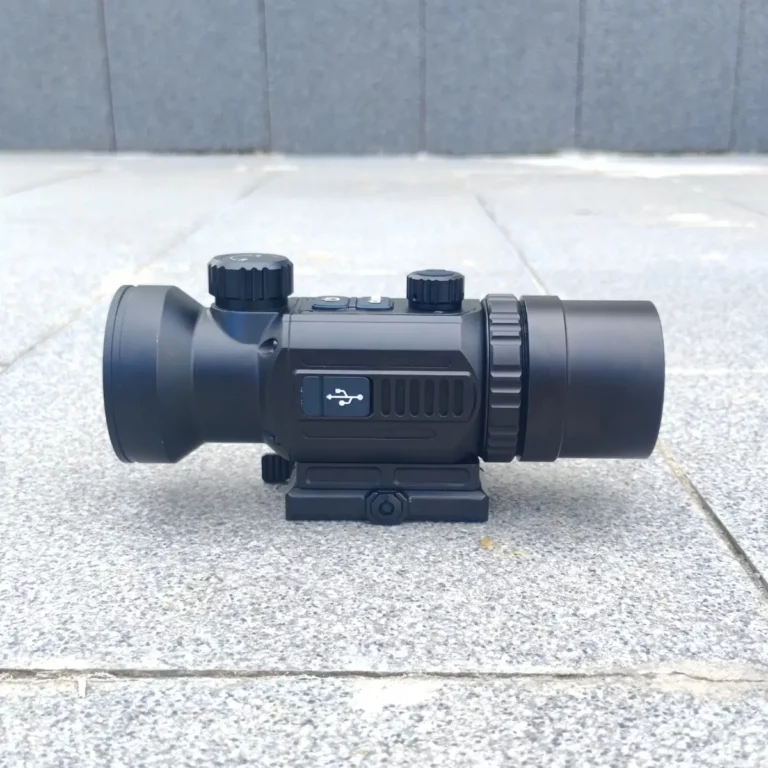

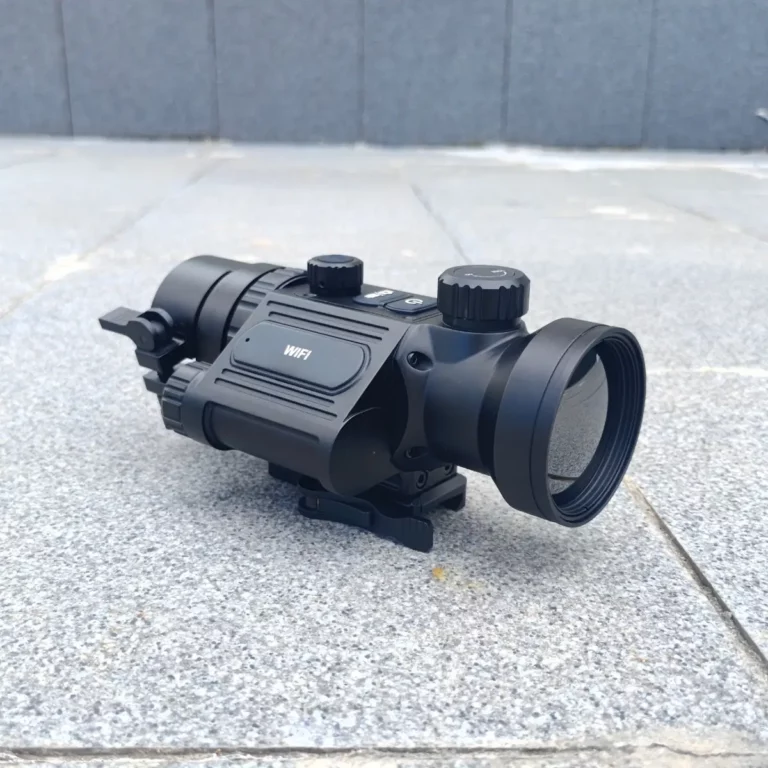

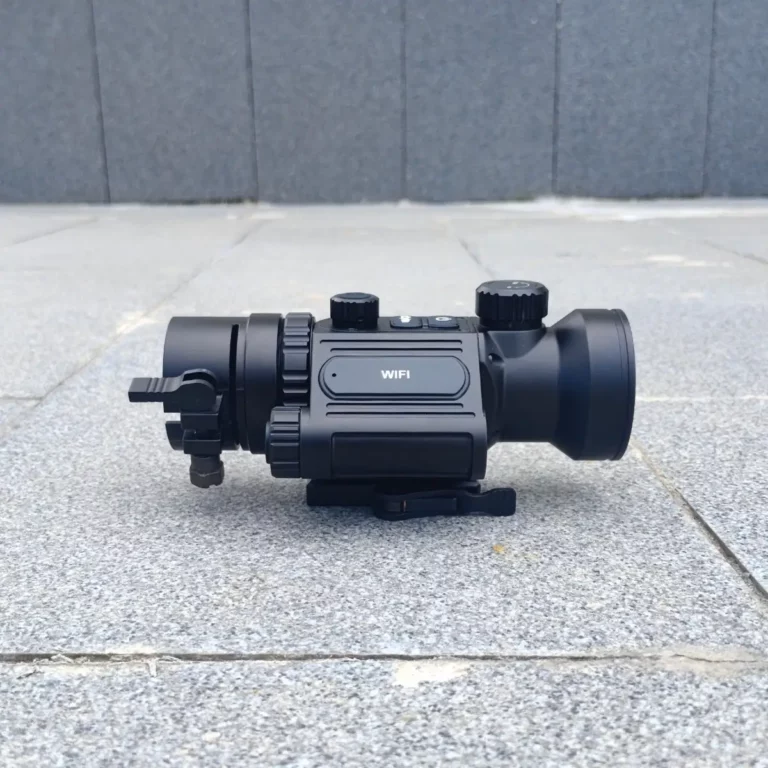

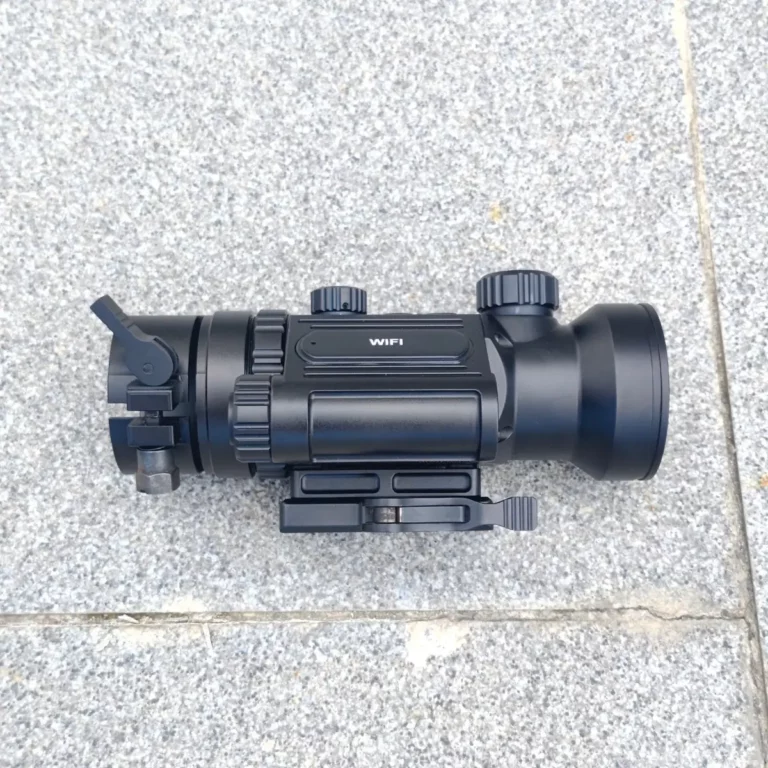

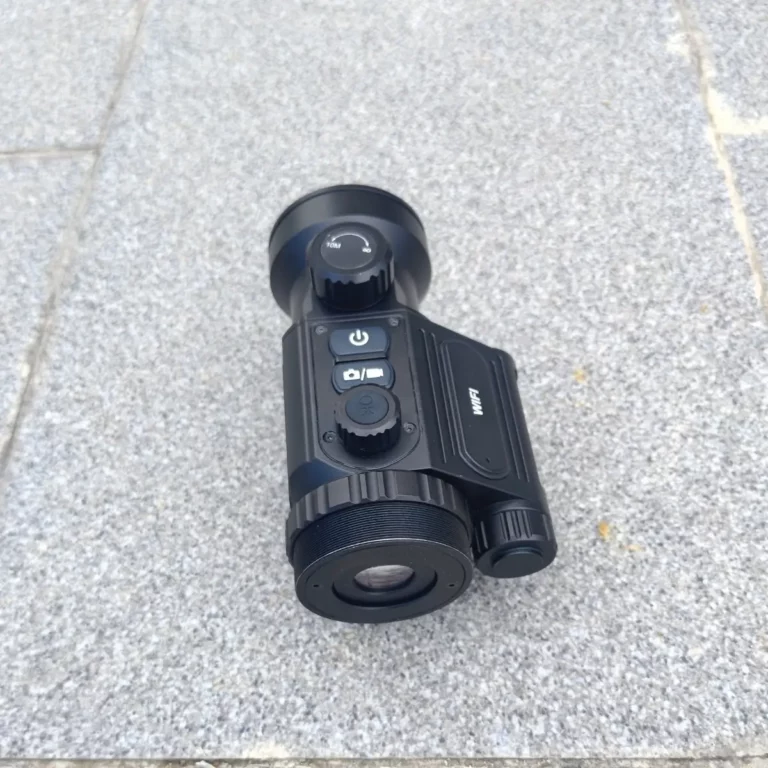

FoxIR 640×512 Thermal Imaging Clip-on
The FoxIR Series is a high-performance thermal imaging clip-on designed for effortless day-to-night conversion. Featuring a 640×512@12μm high-resolution detector with exceptional NETD ≤18mK and a premium 50mm F1.0 large-aperture lens, it delivers crystal-clear thermal imagery while maintaining the original ballistic zero of your daytime scope.
FoxIR Series
FoxIR Series is a professional thermal imaging clip-on designed for quick day-to-night conversion. Featuring a 640×512@12μm high-resolution detector with NETD ≤18mK and a 50mm F1.0 large-aperture lens, it offers 1x magnification to perfectly preserve the ballistic zero of your daytime scope, with a detection range up to 2600 meters. It supports photo/video recording, hot spot tracking, WiFi transmission, multiple image polarities (White Hot, Black Hot, Red Hot, Fusion, Contour), and 1-8× digital zoom. Optional 1km laser rangefinder, boot time ≤5 seconds, IP67 waterproof & dustproof rating, 1000G shock resistance, powered by 18650 or CR123A batteries with ≥5 hours runtime, and lightweight at only ~520g — the perfect solution to upgrade existing daytime scopes for all-weather operations.
FoxIR Thermal Imaging Clip-on Specifications
| Cores | |
|---|---|
| Detector Specifications | 640×512,@12µm |
| NETD | ≤18mk |
| Frame rate | 50hz |
| Objective | 50mm |
| Field of view | 8.7°×7.0° |
| Detection range | 2600 |
| Display resolution | 0.39inch OLED,1024×768 |
| Magnification | 1x-8x |
| Image polarity | White hot, black hot, red hot, fusion, contour |
| Power Supply | |
| Power supply | 1 rechargeable 18650 batteryOr connect 2 CR123A in series |
| Continuous working time | ≥5h (normal temperature 25°) |
| Volume | |
| Laser Ranging | Optional 1km |
| Operating temperature | -20℃~+55℃ |
| Storage temperature | -40℃~+70℃ |
| Reliability | 1000g |
| Protection level | IP67 |
| Product dimensions | 154*86*76mm，6.06in*3.39in*2.99in |
| Weight | 520g |
| Other Information | |
| Photo and video | Support |
| Focus range | 5m～∞ |
| Image brightness | 1-10 File |
| Image contrast | 1-10 File |
| Image enhancement | 1-10 File |
| Screen brightness | 1-10 File |
| Background correction | Support |
| Hotspot tracking | Support |
| WIFi | Support |
| Dead pixel correction | Support |
| language | English, customizable |
| Scope calibration | Support |
| Data Interface | TYPE_C; supports external power supply,Mobile storage, software upgrade |
