Product Introduction

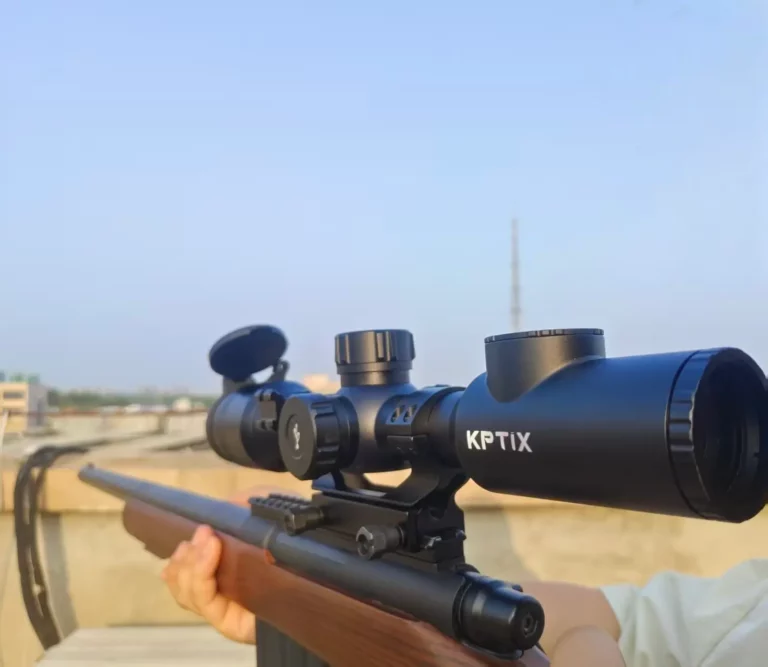

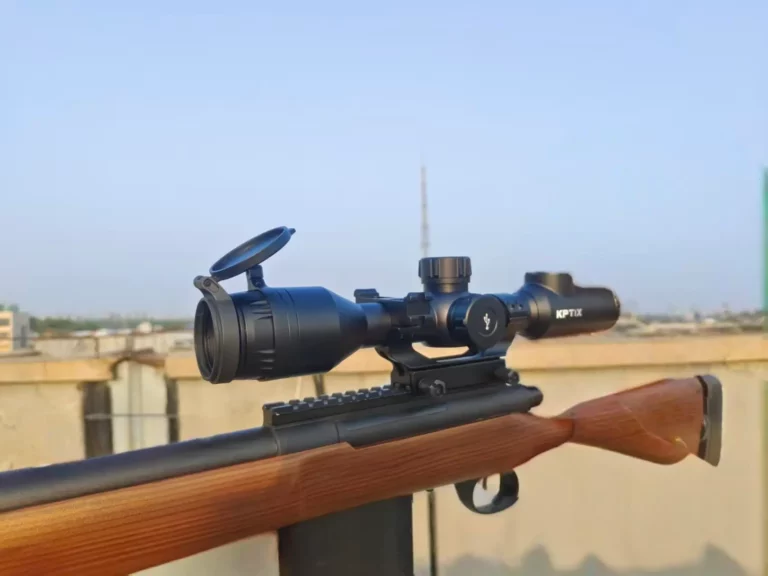

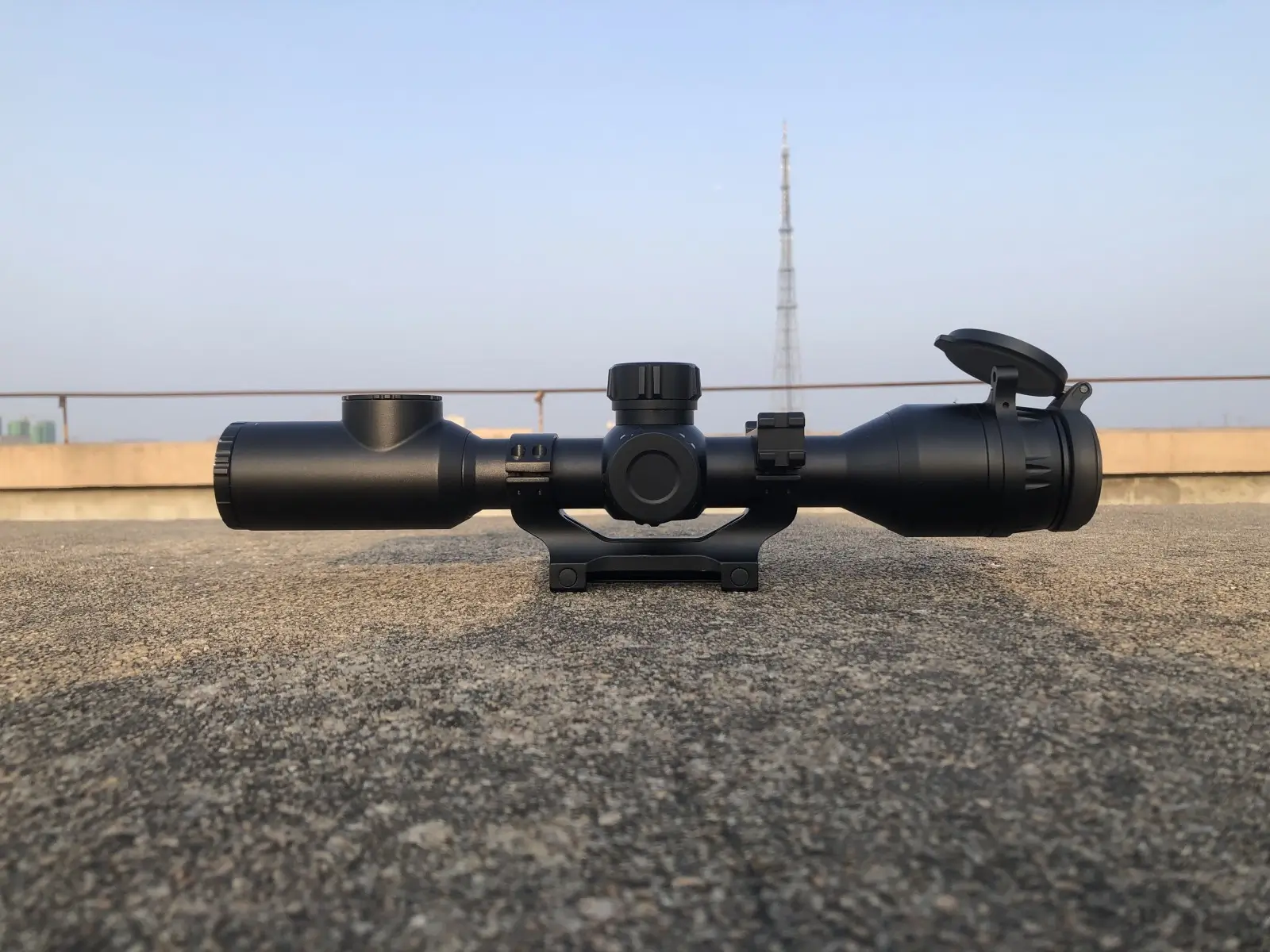

NyzPro thermal imager scope redefines industry standards with cutting-edge technology and innovative design. Featuring 10 reticle types, 9 vibrant color options, and 7 image polarity modes (white-hot, black-hot, iron-red, etc.), it delivers a stunning visual experience. Unlike competitors, it offers WIFI wireless transmission for real-time image sharing, a built-in electronic compass, angle sensor, and exclusive probabilistic ranging for precise distance estimation. With blind pixel correction, picture-in-picture, 2.8-22.4× electronic magnification, photo/video recording, and a ≥12-hour battery life, NyzPro outshines traditional scopes, blending practicality and performance.

Get The Price

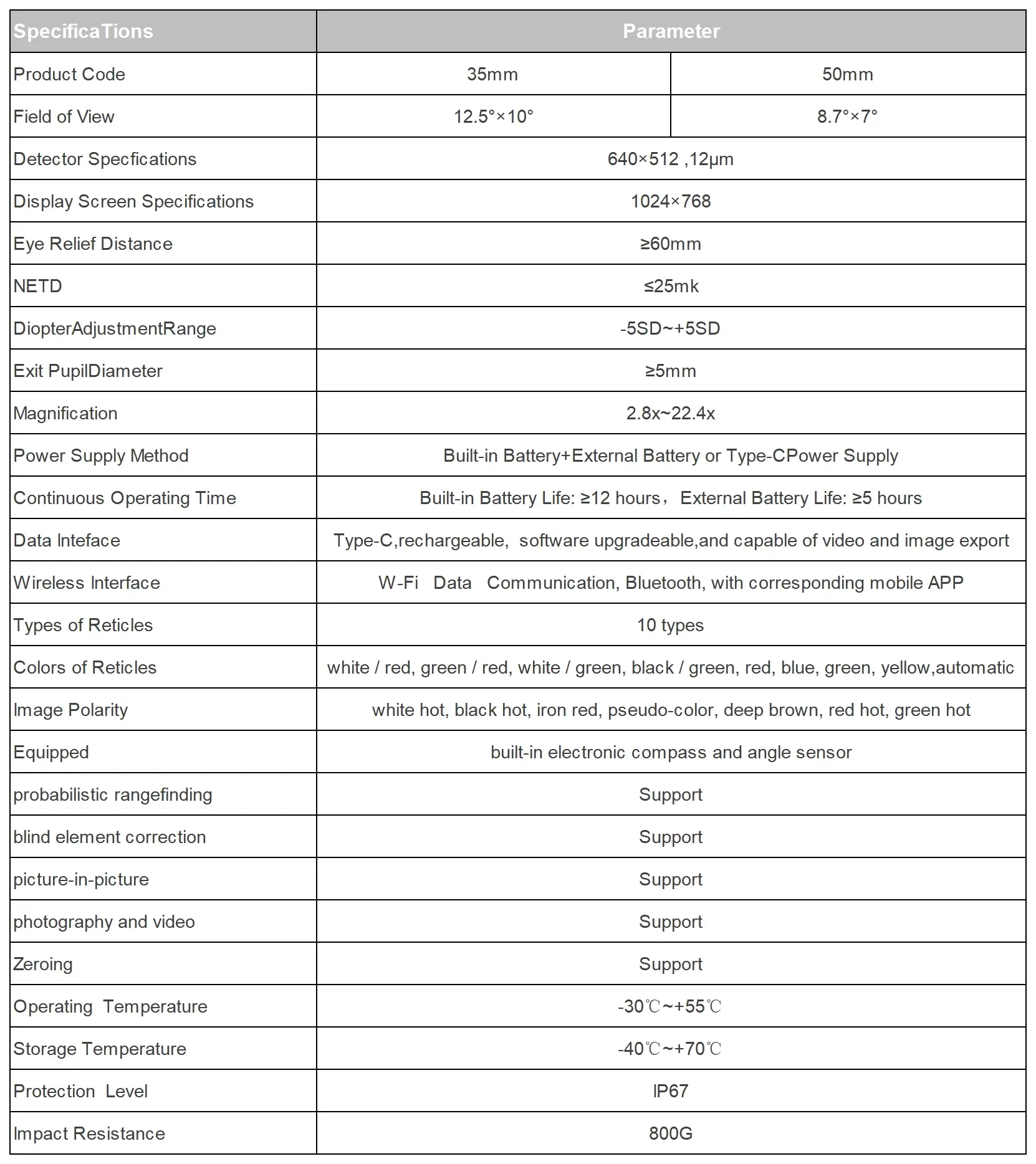

Parameter details

SpecificaTions	Parameter
Product Code	35mm	50mm
Field of View	12.5°×10°	8.7°×7°
Detector Specfications	640×512 ,12μm
Display Screen Specifications	1024×768
Eye Relief Distance	≥60mm
NETD	≤25mk
Diopter Adjustment Range	-5SD~+5SD
Exit Pupil Diameter	≥5mm
Magnification	2.8x~22.4x
Power Supply Method	Built-in Battery+External Battery or Type-CPower Supply
Continuous Operating Time	Built-in Battery Life: ≥12 hours，External Battery Life: ≥5 hours
Data Inteface	Type-C,rechargeable, software upgradeable,and capable of video and image export
Wireless Interface	W-Fi Data Communication, Bluetooth, with corresponding mobile APP
Types of Reticles	10 types
Colors of Reticles	white / red, green / red, white / green, black / green, red, blue, green, yellow,automatic
Image Polarity	white hot, black hot, iron red, pseudo-color, deep brown, red hot, green hot
Equipped	built-in electronic compass and angle sensor
probabilistic rangefinding	Support
blind element correction	Support
picture-in-picture	Support
photography and video	Support
Zeroing	Support
Operating Temperature	-30℃~+55℃
Storage Temperature	-40℃~+70℃
Protection Level	IP67
Impact Resistance	1200G
