Product Introduction

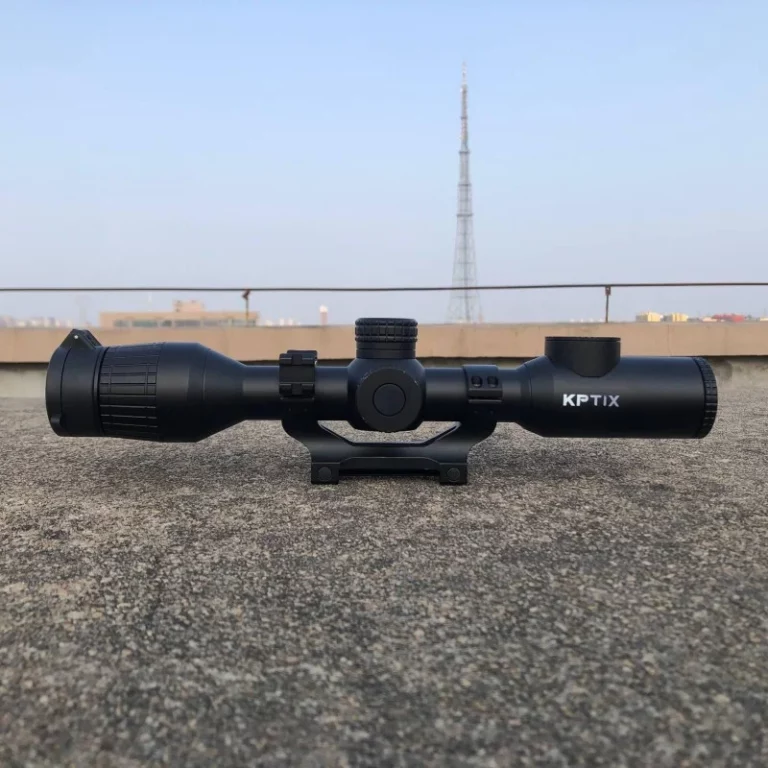

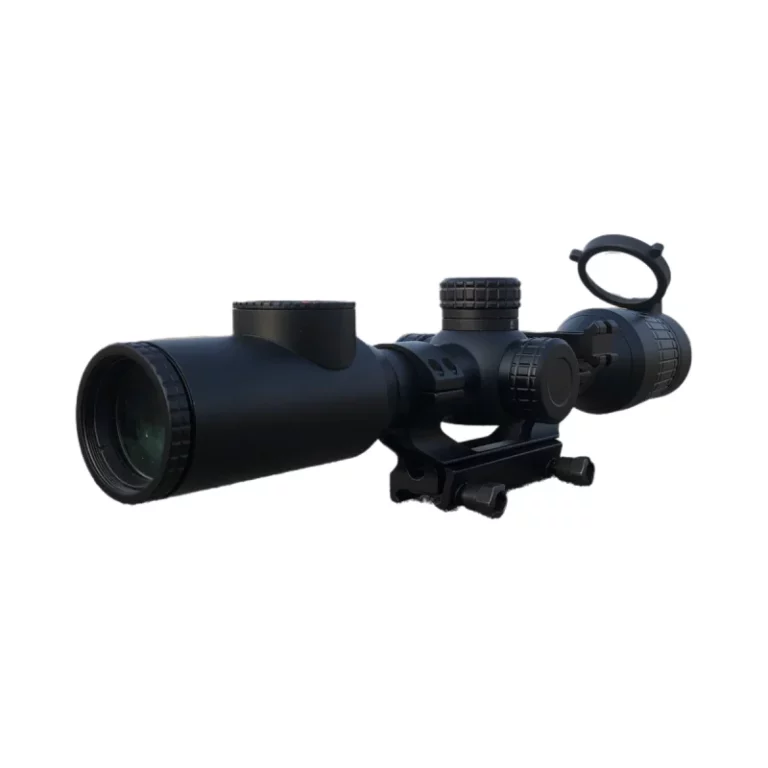

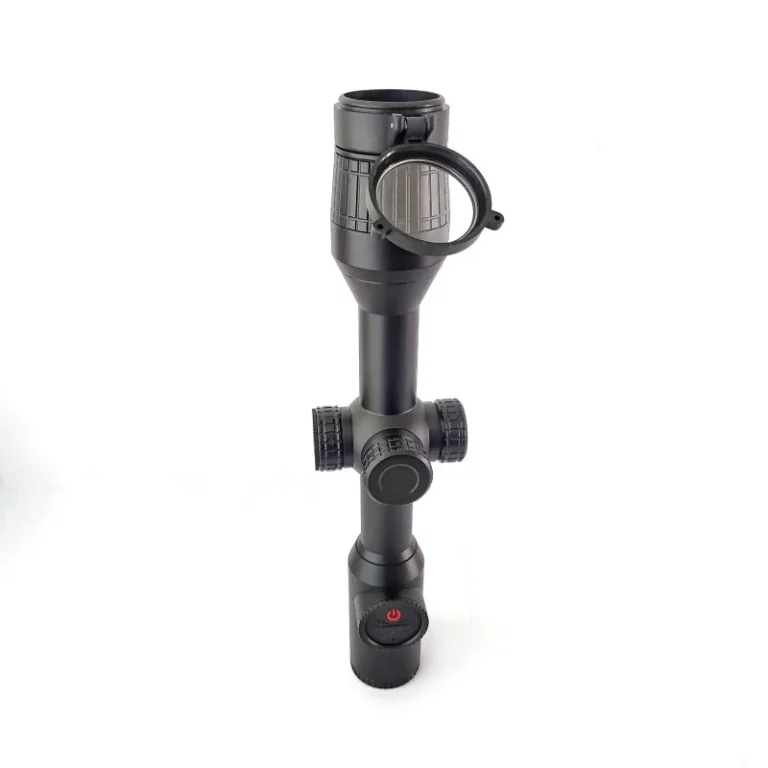

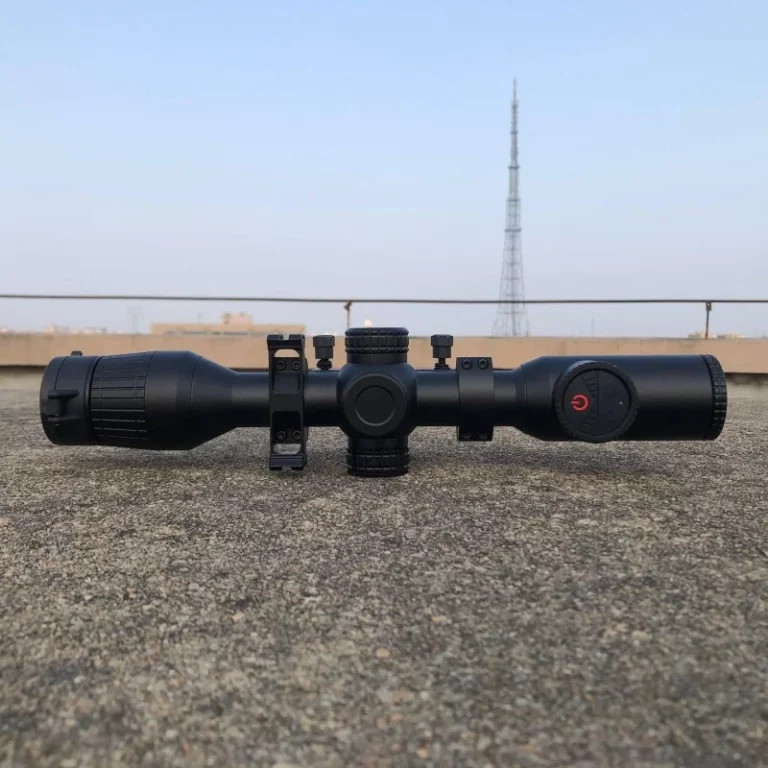

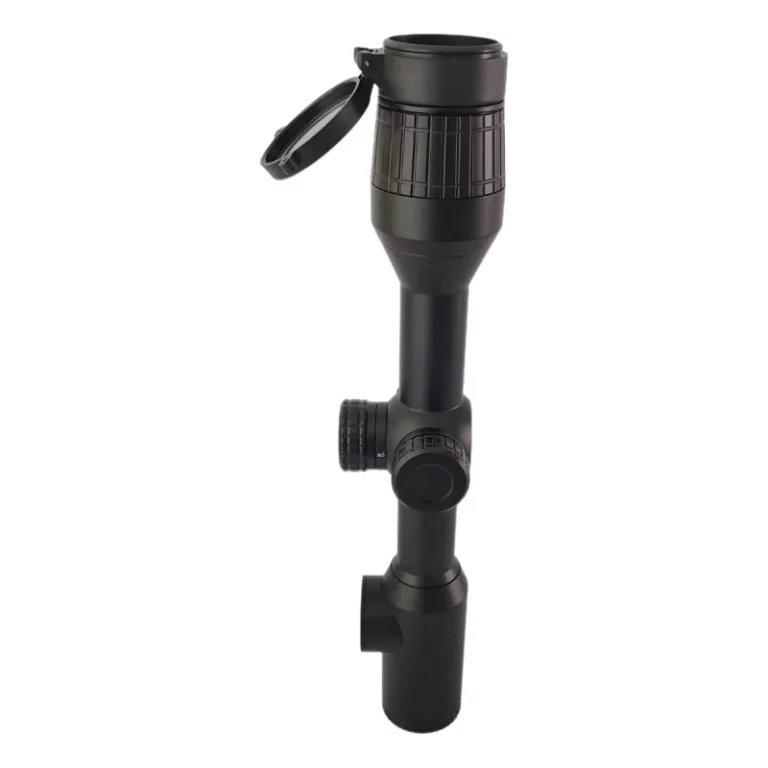

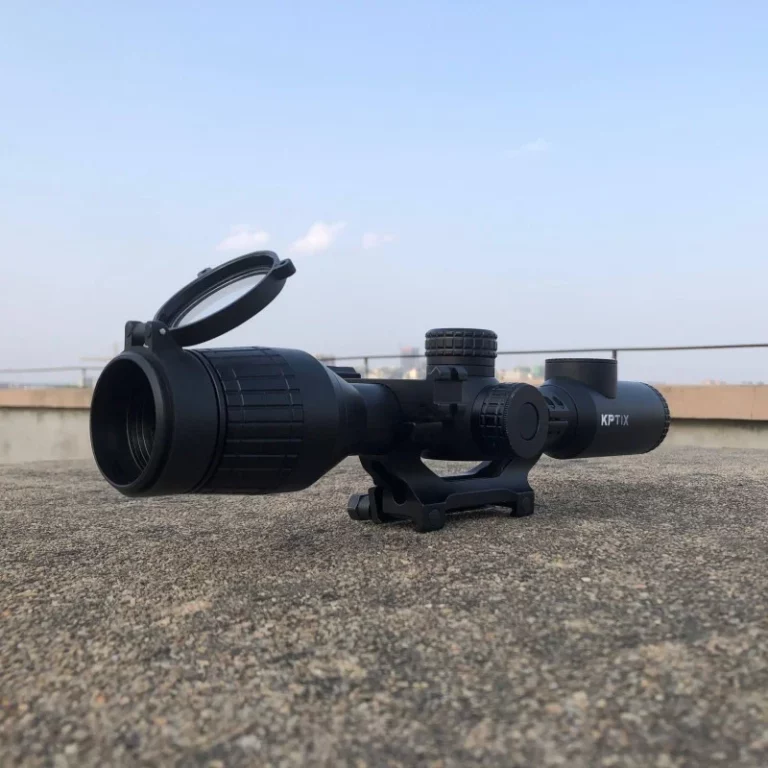

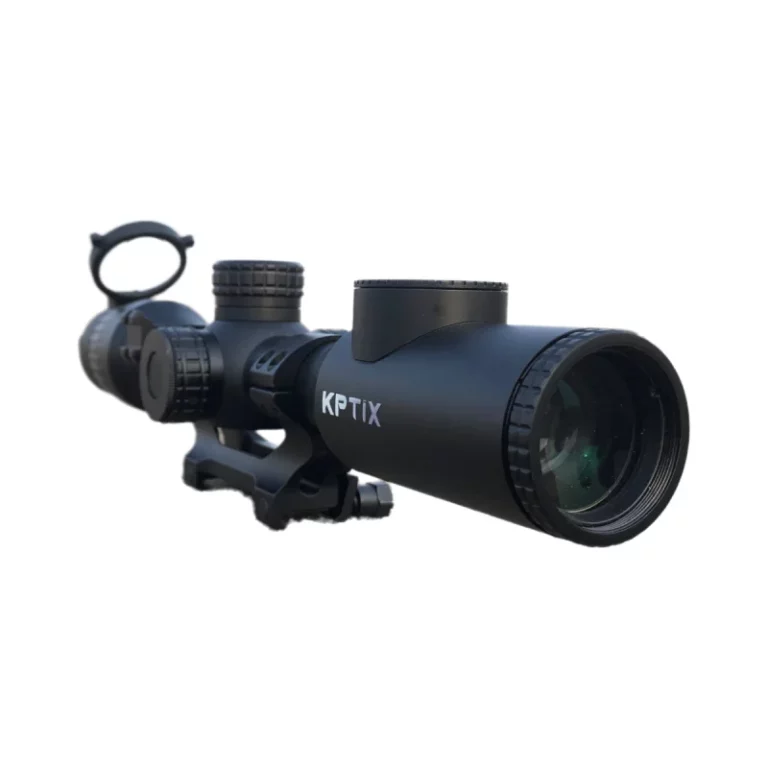

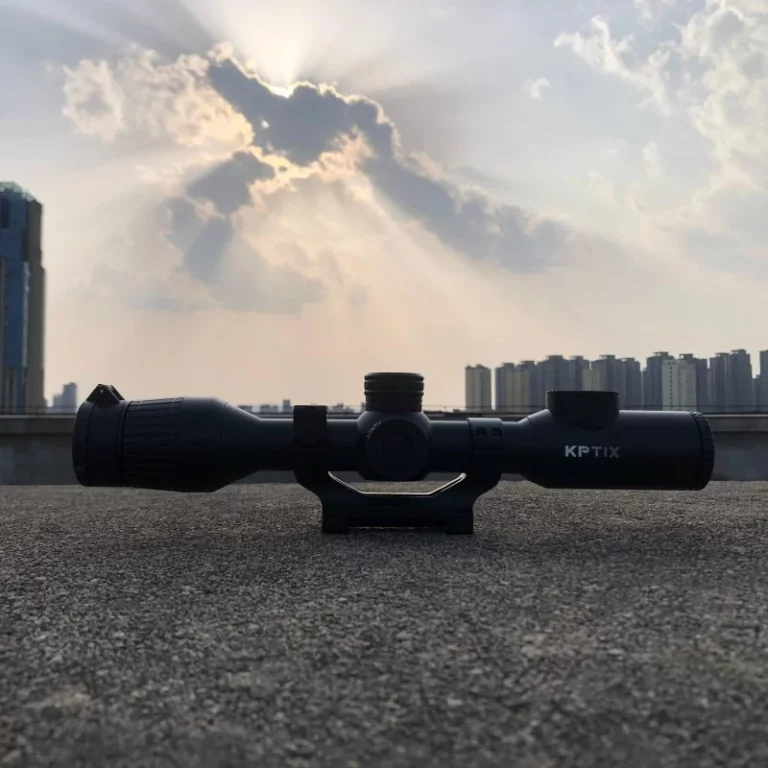

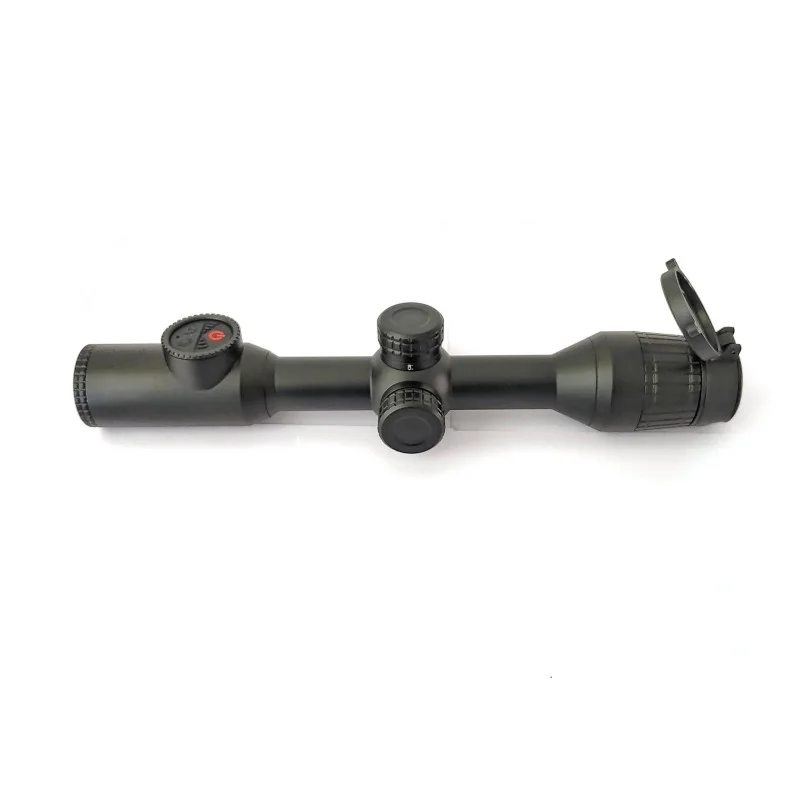

Nyz 384 Series Features:
Lens and detector: 12um 384×288 detector,35/50mm lens.
Differentiation settings: 10 reticle styles × 4 color combinations
Image polarity: White Hot/Black Hot/Fusion/Red Hot.
Magnification: 1x-8x.
Battery life: Built-in battery + external battery or Type-c power supply, ≥10h.
Get The Price

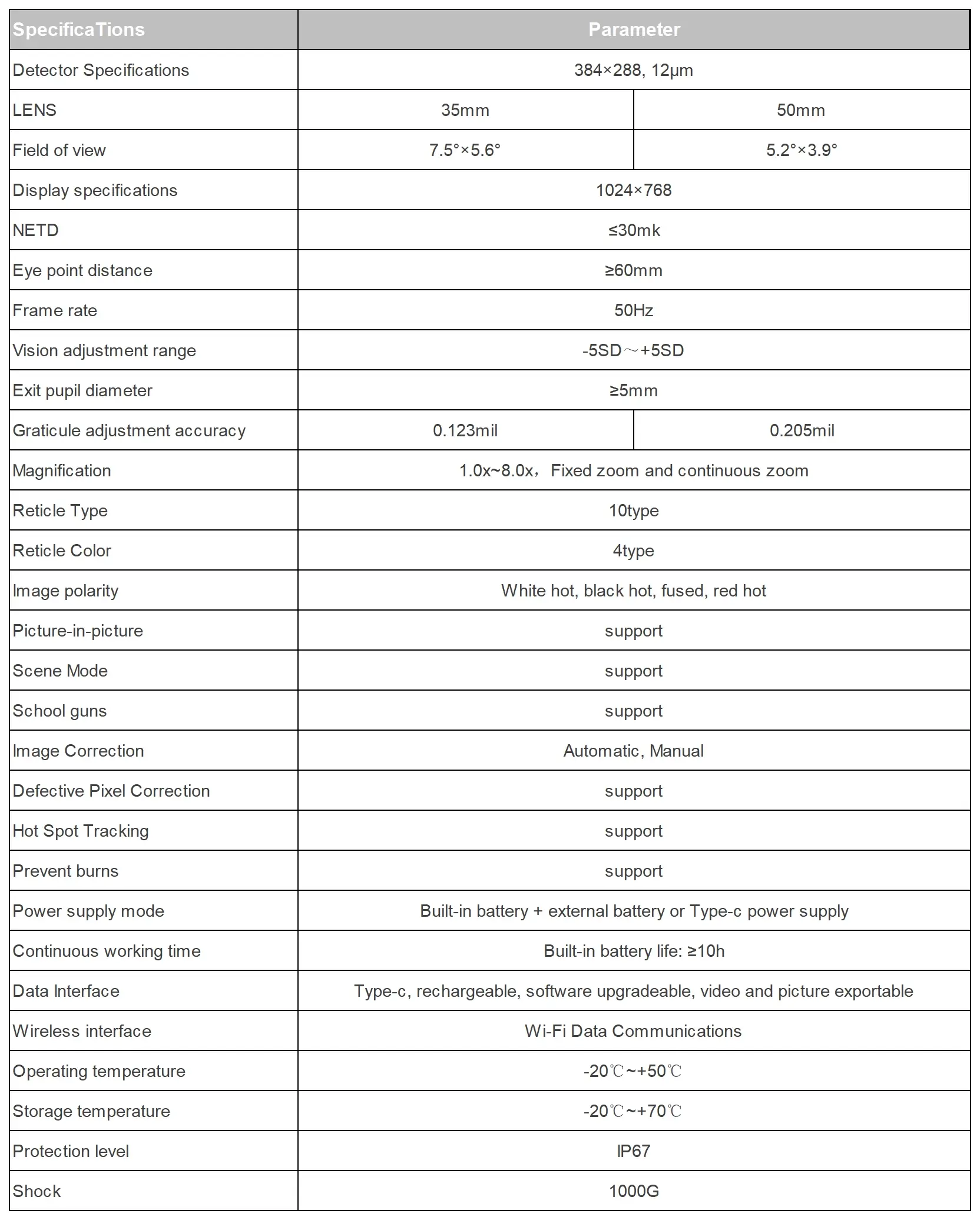

Parameter details
| SpecificaTions | Parameter | ||
| Detector Specifications | 384×288, 12µm/(640×512) | ||
| LENS | 35mm | 50mm | |
| Field of view | 7.5°×5.6° | 5.2°×3.9° | |
| Display specifications | 1024×768 | ||
| NETD | ≤30mk | ||
| Eye point distance | ≥60mm | ||
| Frame rate | 50Hz | ||
| Vision adjustment range | -5SD～+5SD | ||
| Exit pupil diameter | ≥5mm | ||
| Graticule adjustment accuracy | 0.123mil | 0.205mil | |
| Magnification | 1.0x~8.0x，Fixed zoom and continuous zoom | ||
| Reticle Type | 10type | ||
| Reticle Color | 4type | ||
| Image polarity | White hot, black hot, fused, red hot | ||
| Picture-in-picture | support | ||
| Scene Mode | support | ||
| School guns | support | ||
| Image Correction | Automatic, Manual | ||
| Defective Pixel Correction | support | ||
| Hot Spot Tracking | support | ||
| Prevent burns | support | ||
| Power supply mode | Built-in battery + external battery or Type-c power supply | ||
| Continuous working time | Built-in battery life: ≥10h | ||
| Data Interface | Type-c, rechargeable, software upgradeable, video and picture exportable | ||
| Wireless interface | Wi-Fi Data Communications | ||
| Operating temperature | -20℃~+50℃ | ||
| Storage temperature | -20℃~+70℃ | ||
| Protection level | IP67 | ||
| Shock | 1000G | ||
