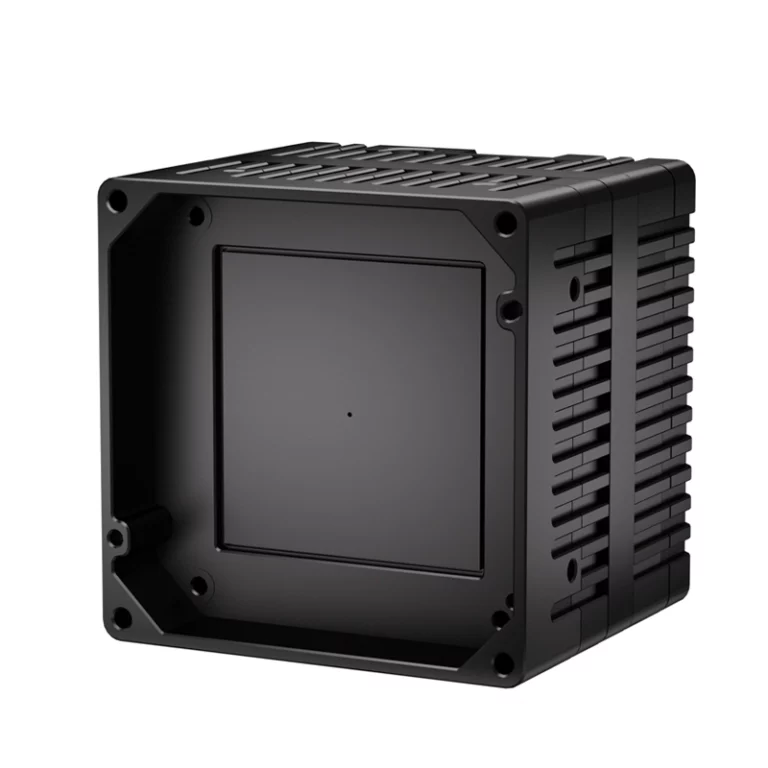

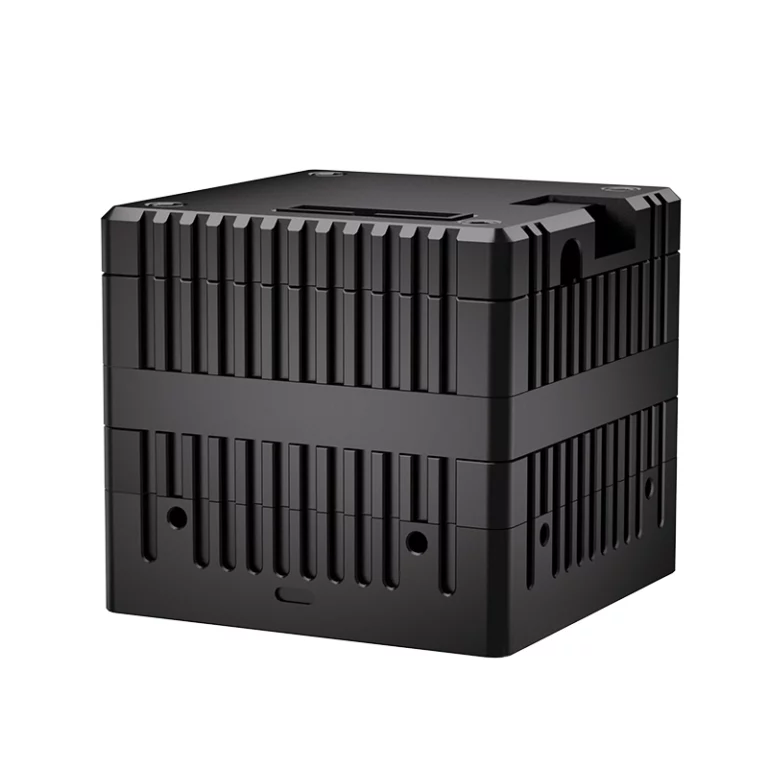

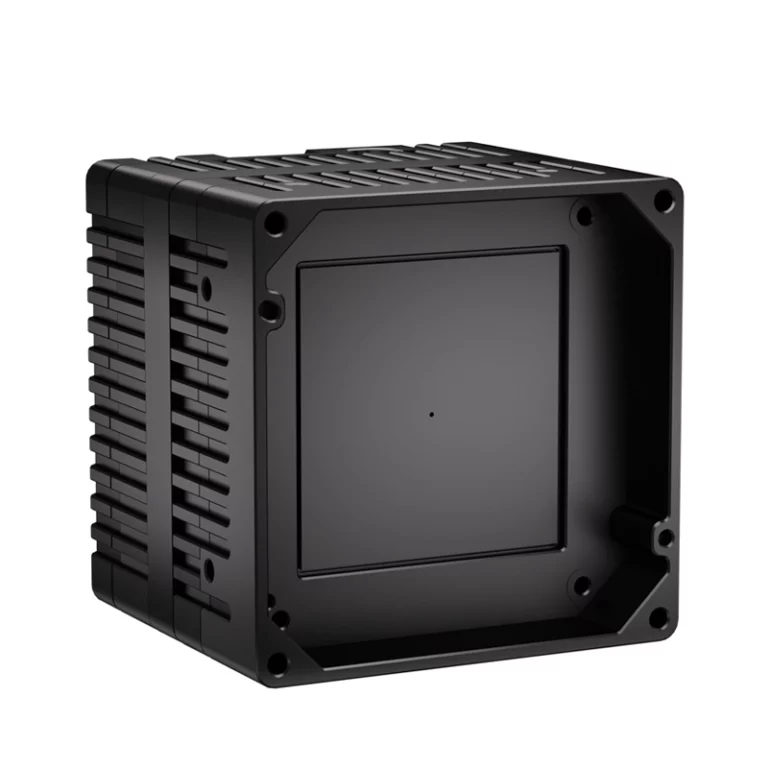

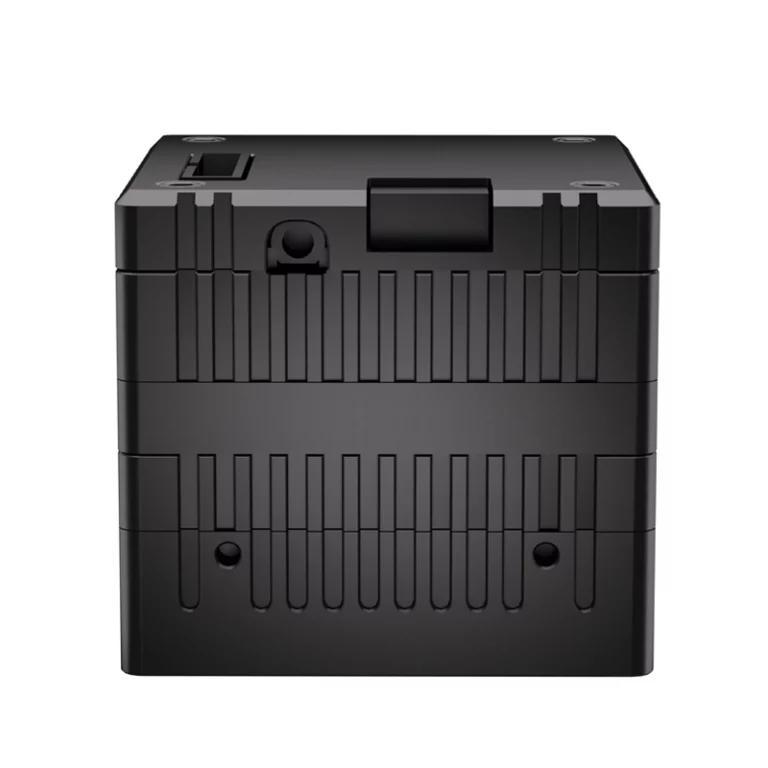

| Overview | XJ 1280×1024 Series |
| Performance ind | ex |
| Detector type | Vanadium oxide uncooled infrared focal plane |
| encapsulation | Ceramic package |
| Resolution | 1280×1024 |
| Pixel spacing | 12μm |
| Response band | 8μm～14μm |
| NETD@25℃ | ≤50mk |
| TEC | X |
| Functional index | |
| Brightness, contrast | Manual/automatic adjustment |
| Polarity | Black/White fever |
| Imageenhancement | On/off |
| Image denoising | Digital filtering for noise reduction |
| Electron doubling | 1.0x-8.0x continuous(0.1 step) |
| Cross cursor | Show/hide/Move |
| Non-uniformity correction | Manual correction,background correction,blind element acquisition,automatic correction on/off |
| Image mirroring | Left/right/up/diagonal |
| Reset/save | Restore factory defaults/save current Settings |
| Imagesynchronization | External synchronization signal 30Hz,LVDS differential mode |
| Status query and save | There are |
| Power source | |
| Power supply range DC | 10V-25V |
| Typicalvoltage DC | 12V |
| Power supply protection | Supports reverse protection |
| Typical power consumption@25℃ | ≤2.6W |
| External interface | |
| Digital video | Digital video format standard HD-SDI Digital video frame rate 30HzDigital video resolution 1920x1080p,infrared image in the center 1280×1024 area,other areas filled in black8bit grayscale data |
| Analog video | X |
| Communication interface | RS422 |
| Motor drive interface | DC12V PWM |
| Stop plate | Yes |
| Physical property | |
| Movement size(L×W ×H) | 45mm×45mm×40.89mm |
| Weight | 130g±10g(without lens,cable) |
| Environmental adaptability | |
| Operatingtemperature | -40℃~+60℃ |
| Storagetemperature | -50℃~+70℃ |
| Vibration | The frequency is 5Hz-55Hz-5Hz,the maximum displacement is 0.75mm,the duration is 5min,the direction is X,Y,Z,andthe component is in working state |
| strike | Acceleration 500g,duration 1ms,direction X,Y,Z three directions,component working state |
