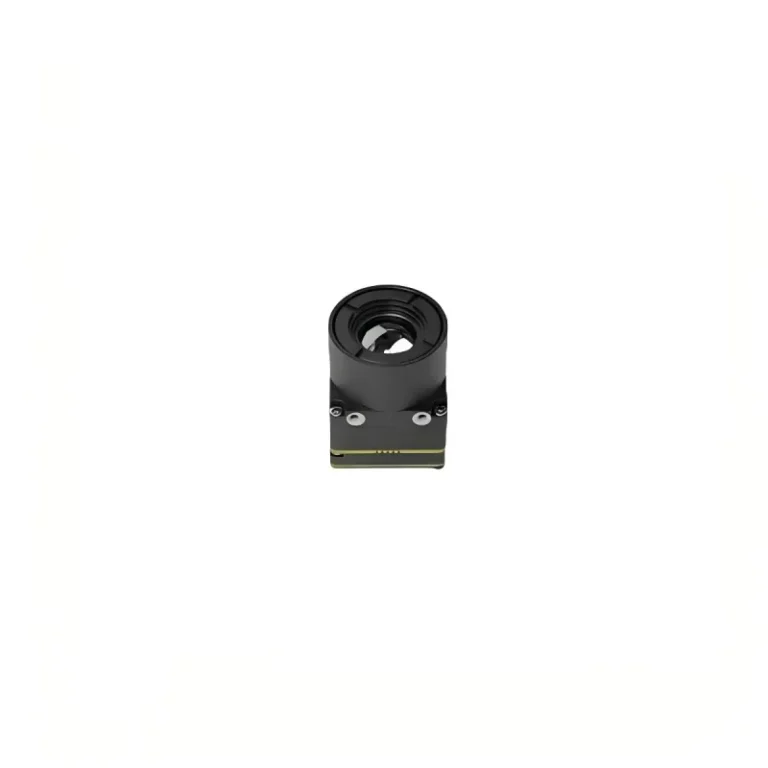

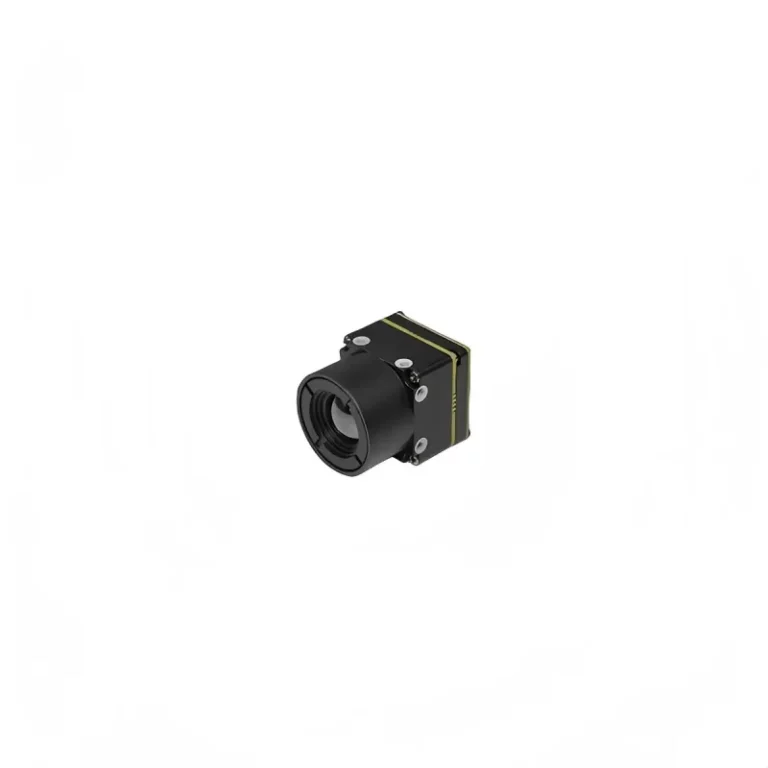

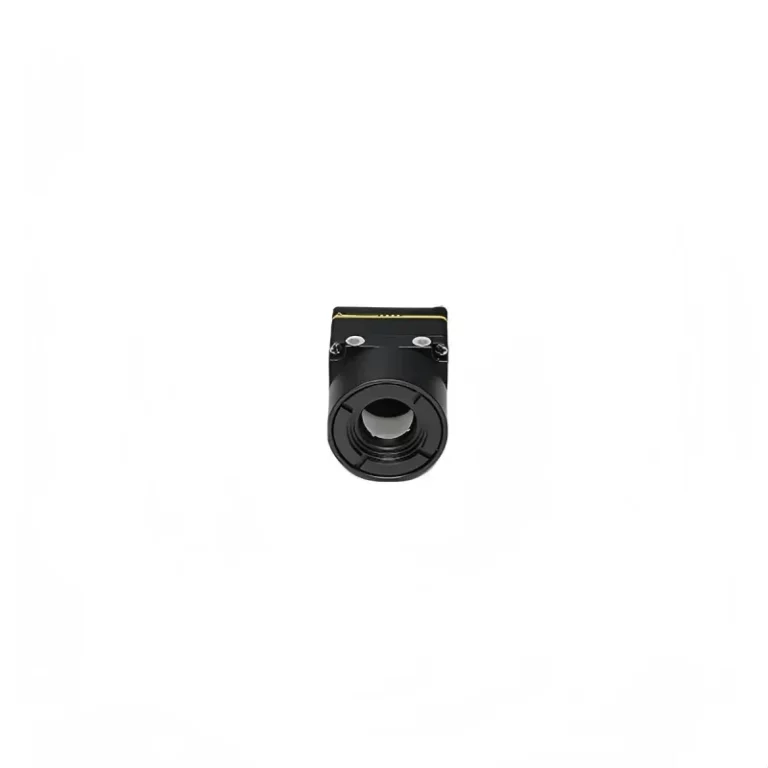

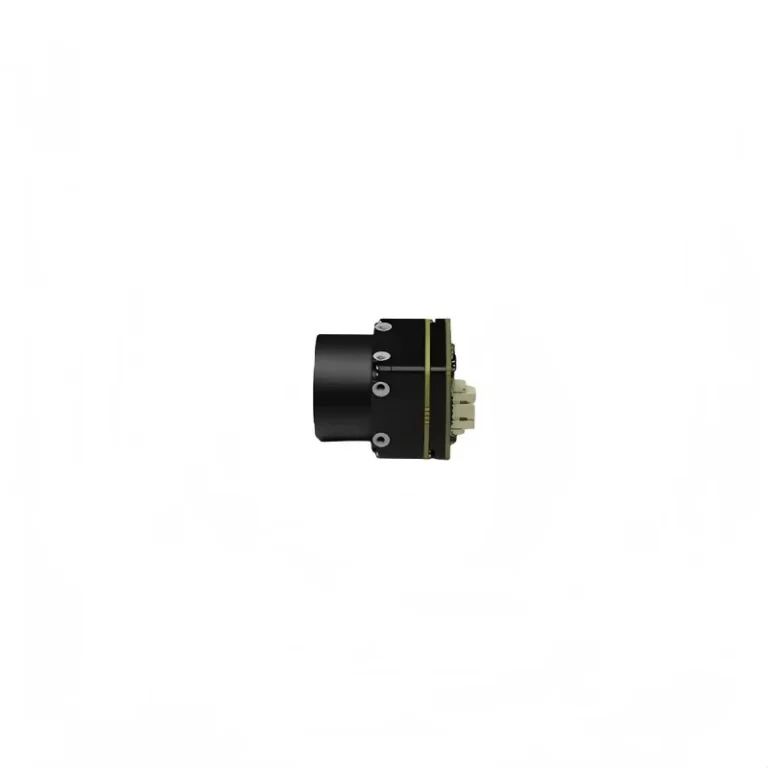

KC384
Cost-Effective Autonomous Technology: The KC 256/384/640 series, powered by self-developed 12μm infrared detectors, offers superior value and performance, making it the top choice for high-resolution needs.
High-Quality Performance, Ultra-Lightweight: These detectors deliver smooth, high-definition images at up to 50Hz with lossless quality. Equipped with two precise temperature measurement modes, they ensure stability across a broad temperature range in diverse conditions. With a compact 21mm×21mm size and a module weight under 8g, integration is seamless.
Flexible Features, Wide Applications: Supporting lensless options and manual/auto-focus non-thermalized lenses, the series provides versatile solutions for a variety of scenarios.
(KC384)Reliable Temperature Detection：This technology excels in industrial temperature monitoring, fire prevention, and rapid identification of safety hazards, ensuring proactive risk management.
Enhanced Nighttime Surveillance：Equipped with advanced surveillance cameras, it enables clear detection of heat-emitting organisms at night, offering superior visibility in low-light conditions.
Diverse Applications：The system supports a wide range of uses, including single-person handheld thermal imagers, handheld thermometers, automotive external thermal imaging, infrared helmets, and UAVs, providing versatile solutions for multiple scenarios.
| Overview | |
| Series | KC 384(384*288Resolution 9.1mm Focal length) |
| Resolution | 384*288 |
| Focal length | 9.1mm |
| Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Frame rate | 50fps |
| Pixel spacing | 12μm |
| NETD | 40mk |
| Response band | 8～14μm |
| Optical parameters | |
| Lens specifications | 9.1mm F1.0 |
| FOV（H*V） | 9.1mm：29.2°×21.7° |
| Imaging/no temperature measurement | imaging |
| Other parameters | |
| Pseudo color | white hot |
| Supply voltage | 4.5-18V |
| Type of output | CVBS |
| Video format | P-system |
| Module volume (no lens) | 21*21 |
| Weight (no lens) | <8 g |
| Working temperature | -40℃～+80℃ |
| Storage temperature | -50℃～+85℃ |

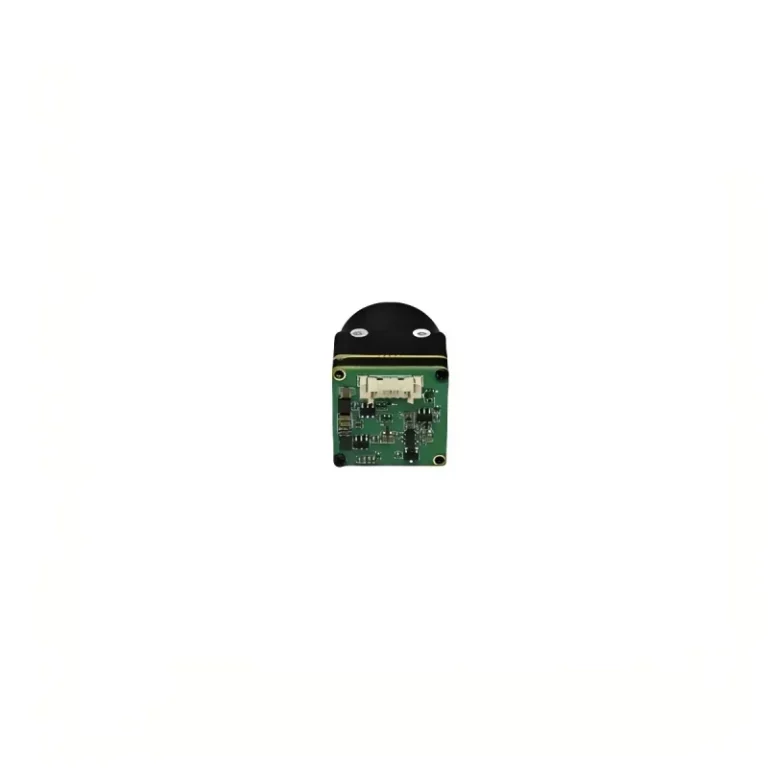

Interface Definition | 5pin/1.25 terminals |
| 1: RX | |
| 2: TX | |
| 3: Analog | |
| 4：GND | |
| 5: 4.5-18V | |
