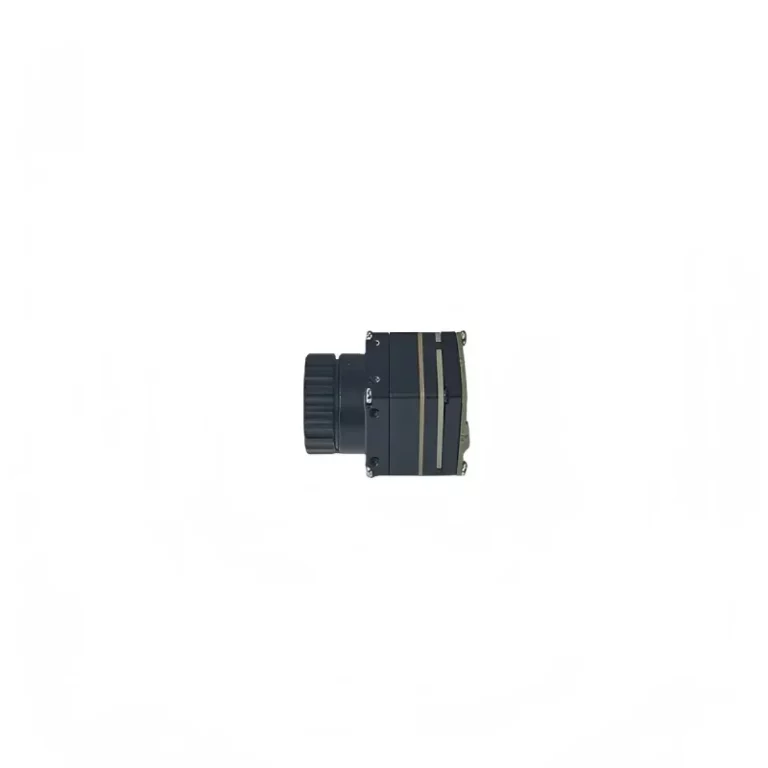

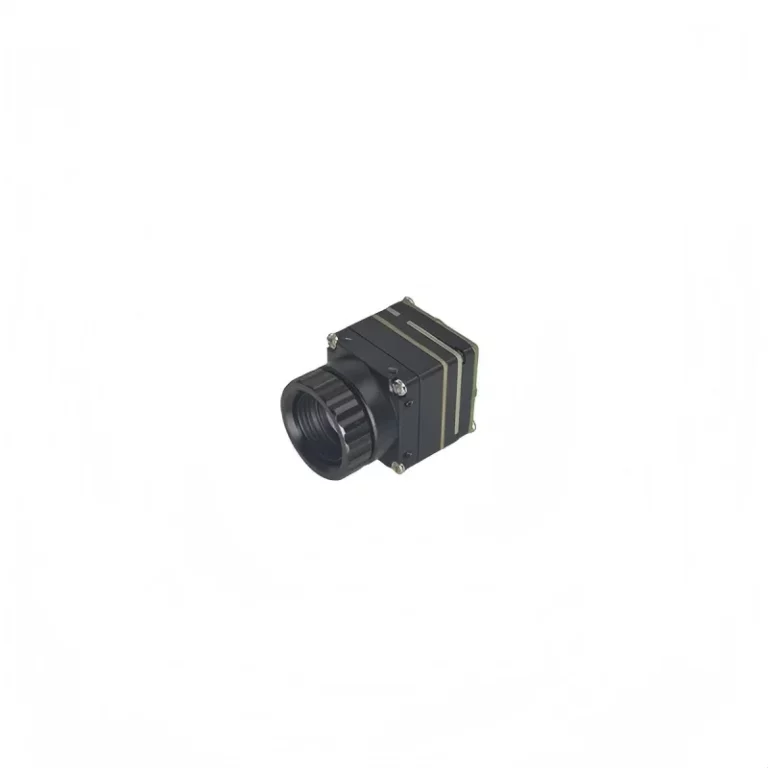

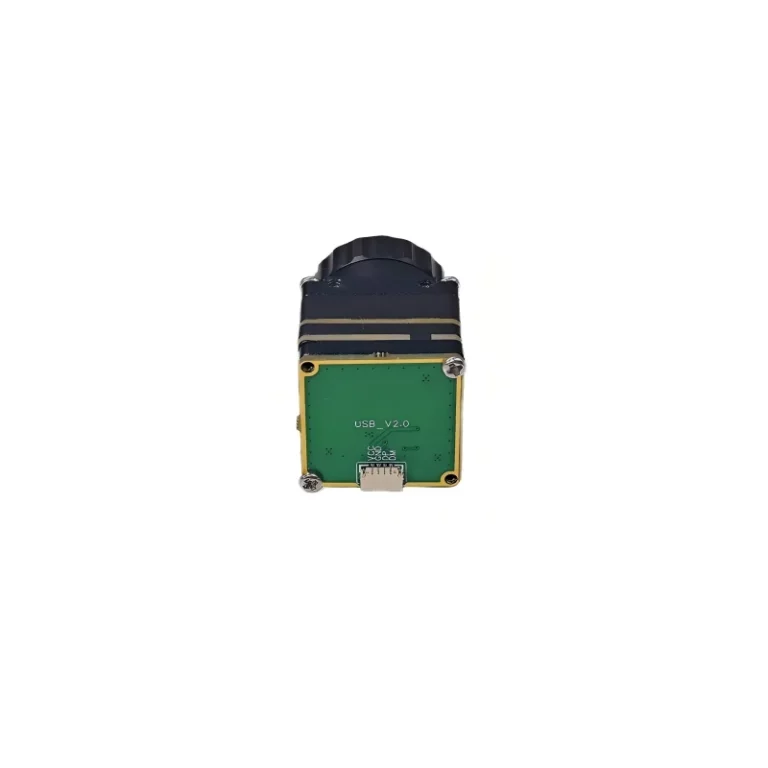

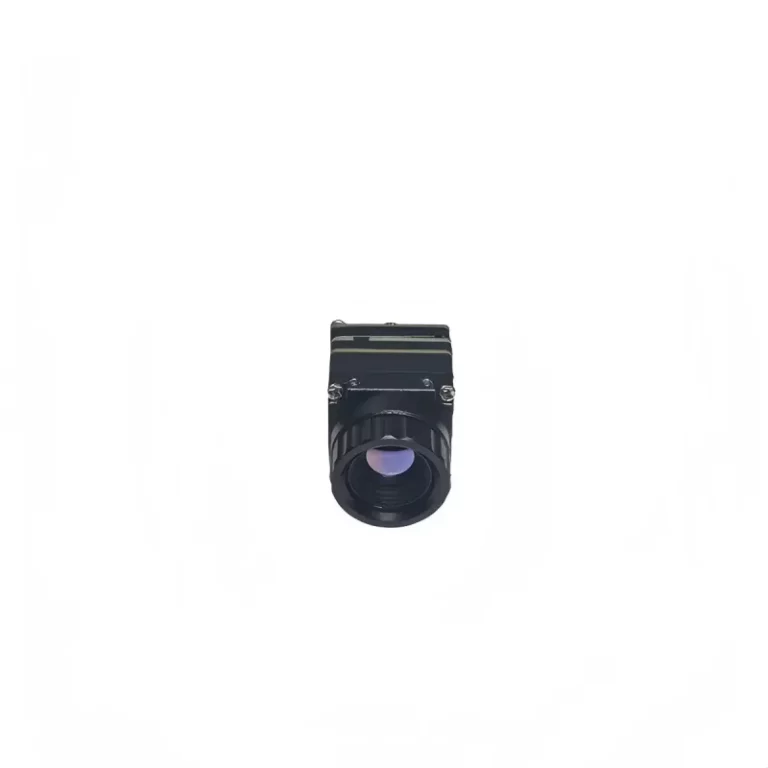

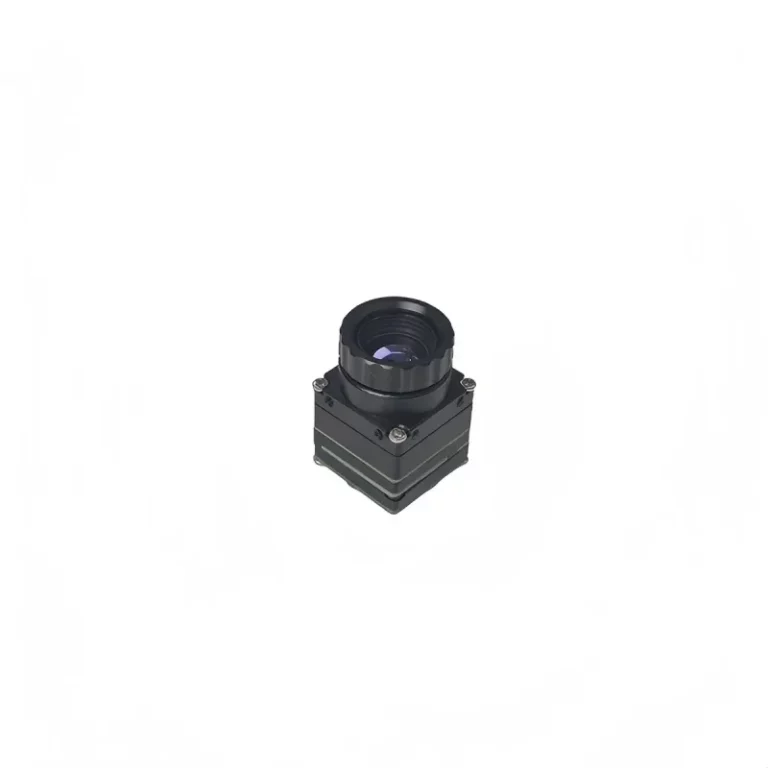

KU256-9USB
Cost-Effective Autonomous Core: The self-developed 12μm infrared detectors in the KU256/384/640 series deliver exceptional value, making them the ideal choice for high-resolution applications at a competitive cost.
Superior Performance, Compact Design: These detectors provide smooth, high-definition images with up to 50Hz lossless quality. Equipped with two precise temperature measurement modes, they ensure stability across a wide temperature range in varying environments. With an ultra-compact 21mm×21mm size and a module weight of under 8g, integration is seamless and convenient.
Versatile Features, Flexible Options: Offering lensless solutions and manual/auto-focus non-thermalized lenses, the series adapts to diverse scenarios, providing rich functionality and multiple configuration choices.
(KU256-9USB)Advanced Temperature Detection: Designed for industrial temperature monitoring, fire prevention, and timely detection of safety hazards, this technology ensures reliable performance across critical applications.
High-Clarity Surveillance: Equipped with surveillance cameras, it enables clear observation of heat-emitting organisms at night, providing enhanced visibility in low-light conditions.
Versatile Applications: Ideal for a range of uses, including single-person handheld thermal imagers, handheld thermometers, automotive external thermal imaging, infrared helmets, and UAVs, offering flexible solutions for diverse scenarios.
| Overview | |
| Sensor | 256X192 9.1mm USB Uncooled infrared focal plane sensor |
| Spectral Range | 8～14 μm |
| Resolution | 256×192 |
| Pixel Size | 12μm |
| NETD | ＜40mK @25℃, F#1.0, 25Hz |
| ＜50mK @25℃, F#1.0, 25Hz | ＜10ms |
| Frame Rate | ≤50Hz |
| Non-uniformity Correction | Automatic with shutter |
| Image Output | 10bit/14bit |
| Lens | Athermalized |
| Radiometric Measurement | |
| Radiometric Range | WR: -15℃~+150℃（High Gain） 50℃~+550℃（Low Gain） |
| CR: 30℃~42℃ | |
| Radiometric Accuracy | WR: Normally±2℃ or ±2% CR: Normally±0.5℃ |
| Electricity | |
| Input Supply Voltage | 1.8V, 3.3V, 5V |
| Image Data Interface | SPI /DVP |
| Control Interface | I2C |
| Power Consumption(room | Operating: Normally 270 mW |
| temperature) | During shutter event: Normally 1200mW |
| Mechanical | |
| Size（w×l×h） | 21 mm × 21 mm × 31 mm (subject to the drawing) |
| Environmental | |
| Optimum Operating Temperature | -40℃~80℃ (Imaging) |
| Range | -10℃~75℃（WR） |
| 10℃~50℃（CR） | |
| Non-operating Temperature | -45℃～85℃ |
| Range | |
| Shock | 25g@11ms, half sine wave, XYZ directions |
| NOTE | |
| Please refer to the product specification for temperature measurement accuracy | |
