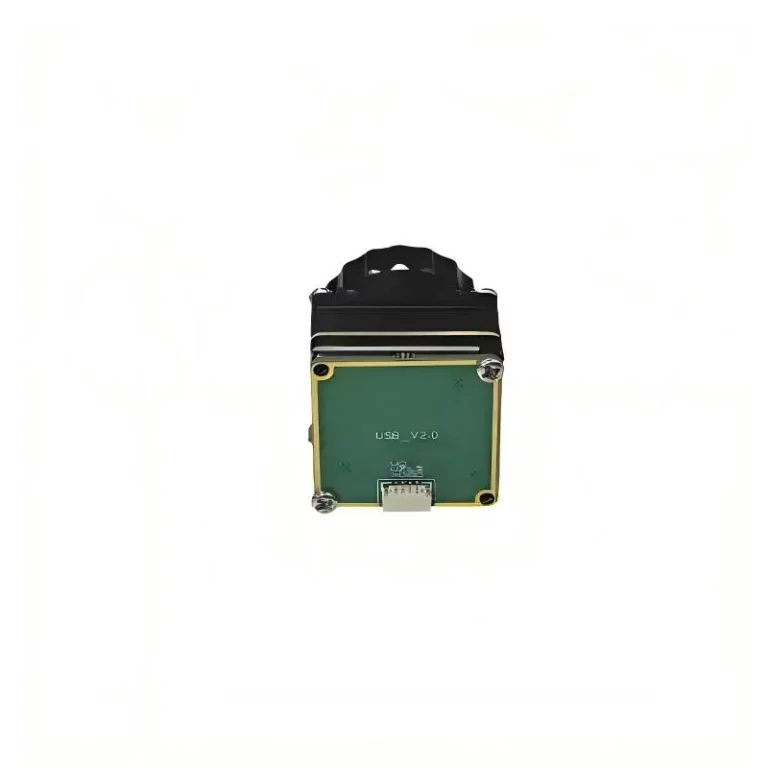

KU256-4USB
Cost-Effective Autonomous Core: The self-developed 12μm infrared detectors in the KU 256/384/640 series deliver exceptional value, making them the ideal choice for matching resolutions.
Superior Performance, Compact Design: These detectors provide smooth, high-definition images with up to 50Hz lossless quality. Equipped with two precise temperature measurement modes, they ensure stable performance across a wide temperature range in various environments. With an ultra-compact 21mm×21mm size and a module weight of under 8g, integration is seamless.
Versatile Functions, Flexible Options: Offering lensless solutions and manual/auto-focus non-thermalized lenses, the series adapts to diverse application scenarios.
(KU256-4USB)Industrial Applications: Thermal imaging technology ensures precise temperature measurement in industrial settings, helping to prevent fires and detect safety hazards promptly.
Nighttime Surveillance: It enables clear observation of heat-emitting organisms at night through surveillance cameras.
Key Applications: Includes handheld thermal imagers, thermometers, automotive external thermal imaging, infrared helmets, and UAVs.
| Overview | |
| KU 256*192 Resolution 4mm Focal length (CVBS) | |
| Resolution | 256*192 |
| Focal length | 4MM |
| Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Frame rate | 25fps |
| Pixel spacing | 12μm |
| NETD | 40mk |
| Response band | 8～14μm |
| Optical parameters | |
| Lens specifications | 4.0mm F1.0 |
| FOV（H*V） | 4mm：45°* 33° |
| Application functions | |
| Imaging/no temperature measurement | imaging |
| Other parameters | |
| Pseudo color | white-hot |
| Supply voltage | 4.5-18V |
| Type of output | USB |
| Module volume (excluding lenses) | 21*21*31mm |
| Weight (excluding lens) | <8 g |
| Working temperature | -40℃ – +80℃ |
| Storage temperature | -45℃ – +85℃ |
