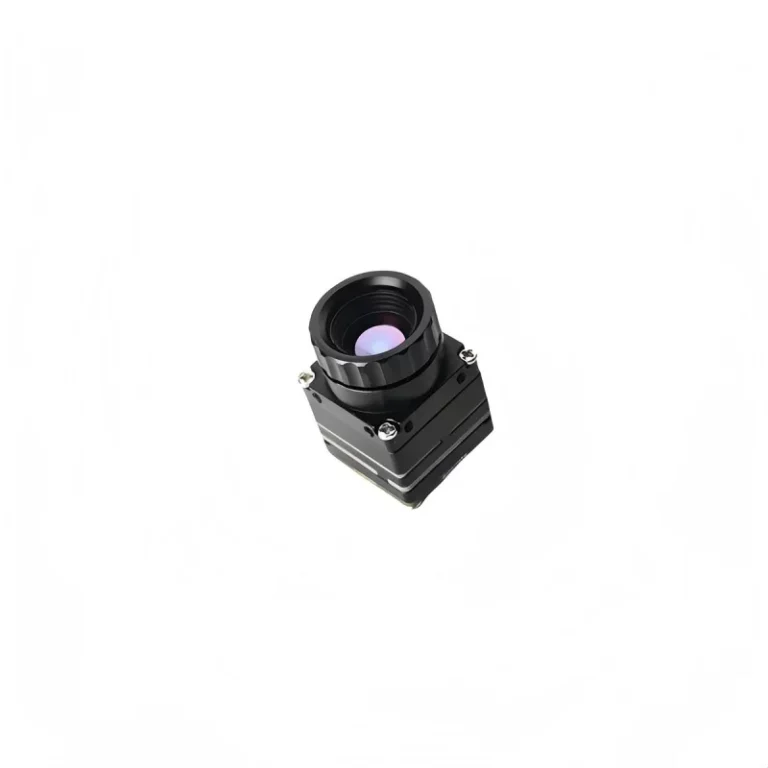

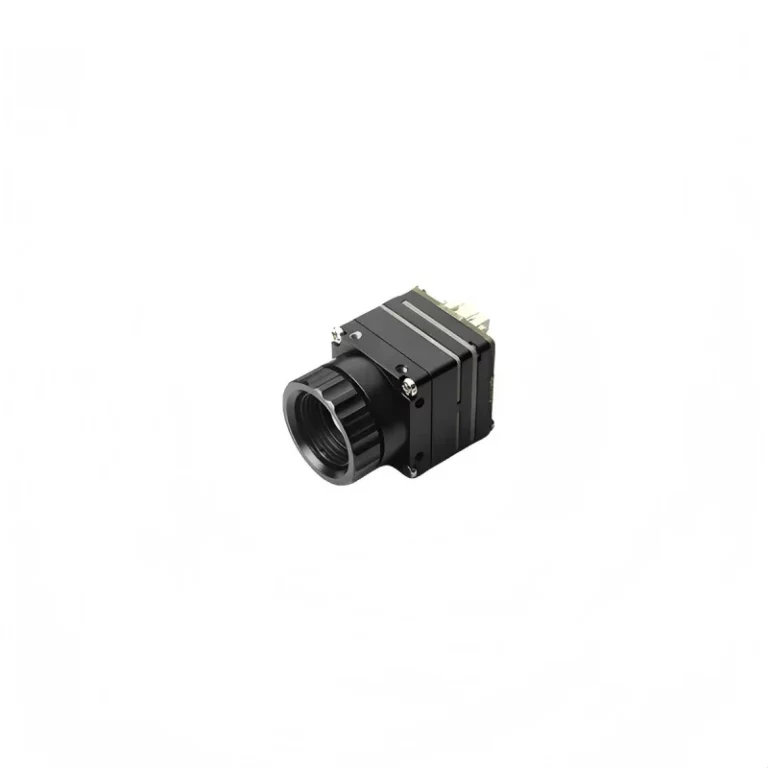

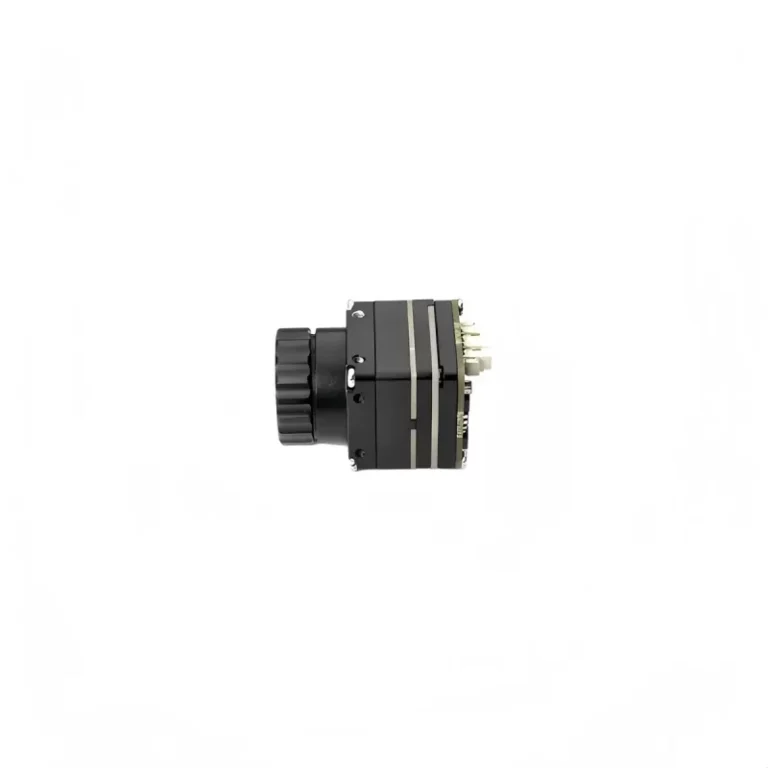

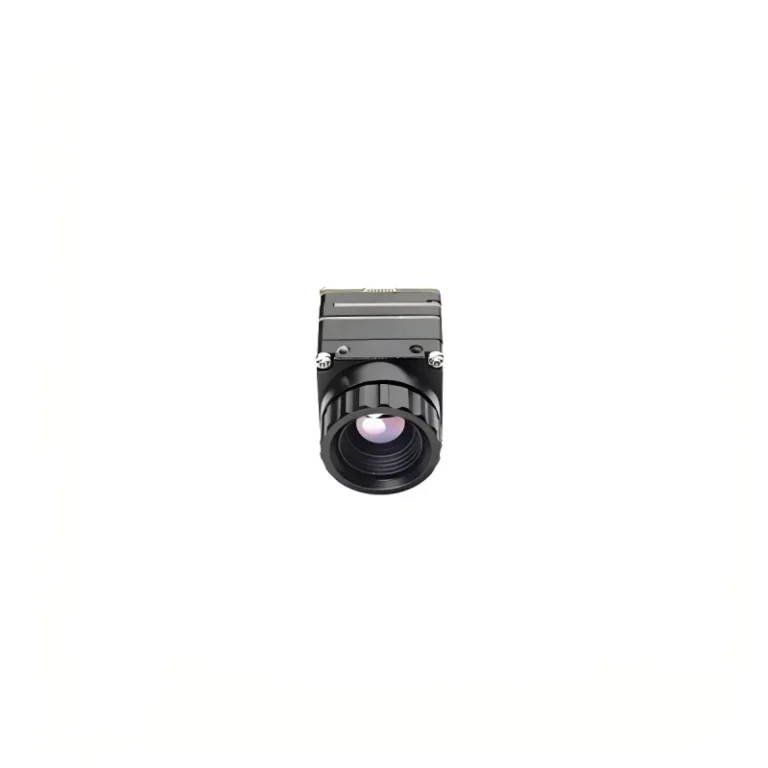

KC256-BS9mm
Cost-Effective Innovation：The KC 256/384/640 series, featuring self-developed 12μm infrared detectors, delivers exceptional value and performance, making it the ideal choice for high-resolution applications.
Compact and High-Performing：These detectors provide smooth, high-definition images at up to 50Hz with lossless quality. With dual precision temperature measurement modes, they ensure reliability across a wide temperature range in varying environments. Measuring just 21mm×21mm and weighing under 8g, the ultra-compact module simplifies integration.
Versatile and Customizable：Offering lensless designs and manual/auto-focus non-thermalized lenses, the series provides flexible functionality to suit a wide range of scenarios.
(KC256-BS9mm)Reliable Temperature Detection：This technology excels in industrial temperature monitoring, fire prevention, and rapid identification of safety hazards, ensuring proactive risk management.
Enhanced Nighttime Surveillance：Equipped with advanced surveillance cameras, it enables clear detection of heat-emitting organisms at night, offering superior visibility in low-light conditions.
Diverse Applications：The system supports a wide range of uses, including single-person handheld thermal imagers, handheld thermometers, automotive external thermal imaging, infrared helmets, and UAVs, providing versatile solutions for multiple scenarios.
| Overview | |
| Series | KC 256*192 Resolution |
| Resolution | 256*192 |
| Detector type | Vanadium oxide uncooled infrared focal plane detector |
| Frame rate | 25fps |
| Pixel spacing | 12μm |
| NETD | 40mk |
| Response band | 8～14μm |
| Optical parameters | |
| Lens specifications | 9.1mm F1.0 |
| FOV（H*V） | 9.1mm：20°* 15° |
| Application functions | |
| Imaging/no temperature measurement | imaging |
| Pseudo color | white hot |
| Supply voltage | 4.5-18V |
| Type of output | Different |
| Video format | P-system |
| Module volume (excluding lenses) | 21*21 |
| Weight (excluding lens) | <8 g |
| Working temperature | -40℃- +80℃ |
| Storage temperature | -45℃ -85℃ |

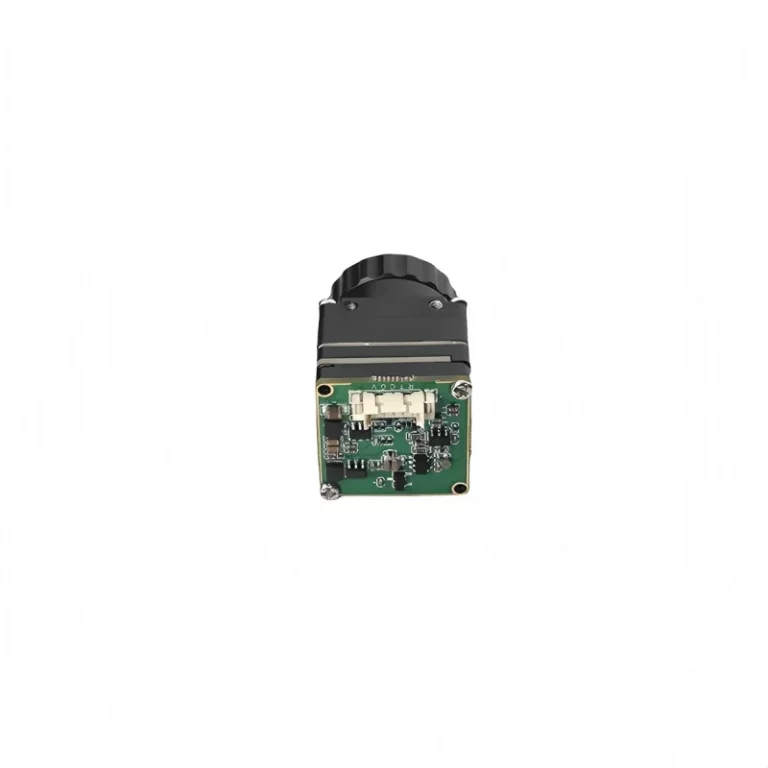

Interface Definition | 5pin/1.25 terminals |
| 1: RX | |
| 2: TX | |
| 3: Analog signal | |
| 4：GND | |
| 5: 4.5-18V | |
