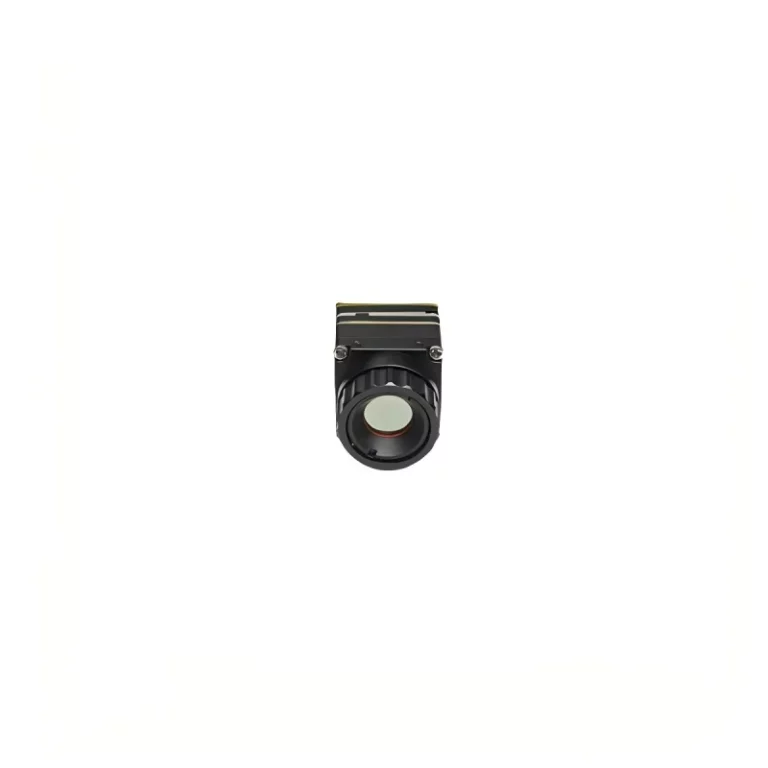

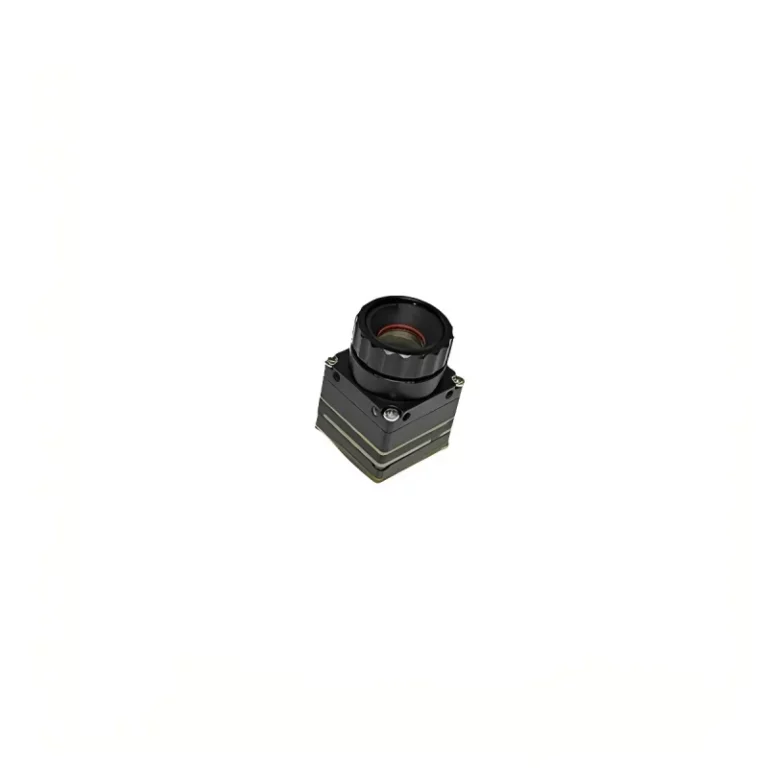

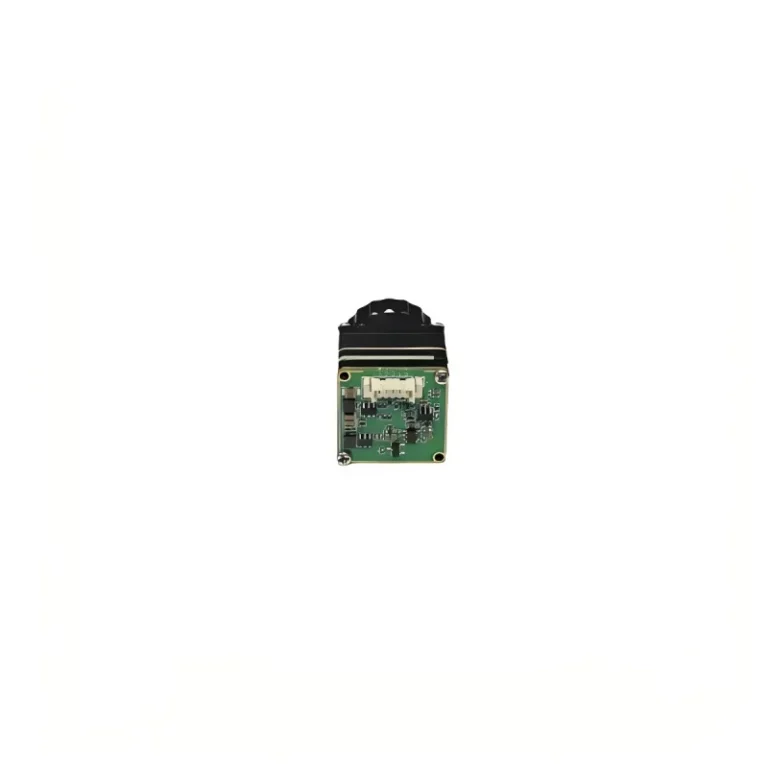

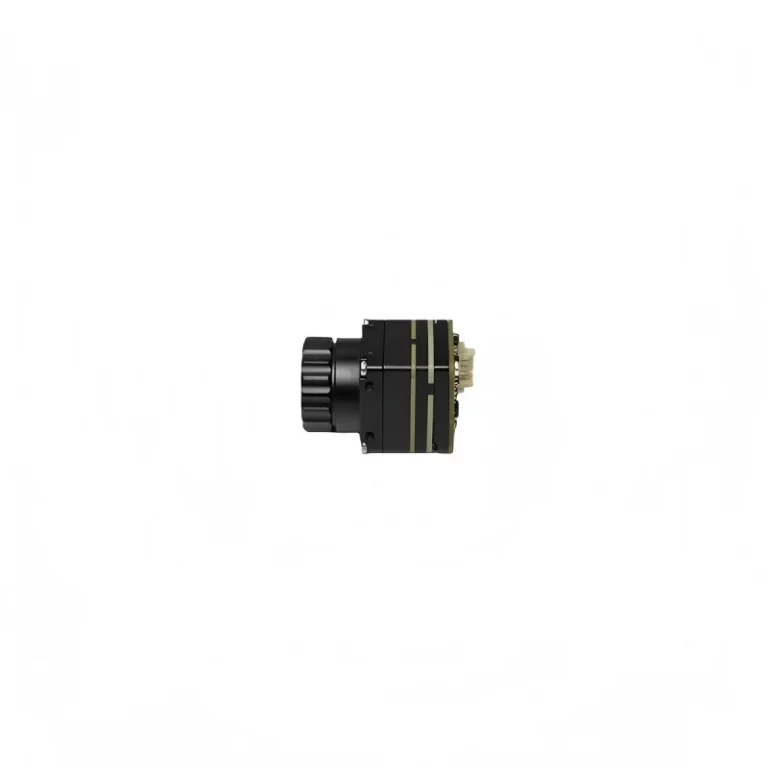

KC256-4mm

Innovative and Cost-Effective Core: The KC 256/384/640 series, equipped with self-developed 12μm infrared detectors, provides exceptional value and performance, making it the top choice for high-resolution applications.
Superior Performance, Compact Design: Delivering smooth, high-definition images at up to 50Hz with lossless quality, these detectors feature two precise temperature measurement modes for reliable operation across a wide temperature range in diverse environments. With a 21mm×21mm ultra-compact size and a module weighing less than 8g, integration is effortless.
Versatile Options, Broad Functionality: The series supports lensless designs and manual/auto-focus non-thermalized lenses, offering flexible solutions to meet the needs of various scenarios.

KC Series Cores

(KC256-4mm)Reliable Temperature Detection：This technology excels in industrial temperature monitoring, fire prevention, and rapid identification of safety hazards, ensuring proactive risk management.
Enhanced Nighttime Surveillance：Equipped with advanced surveillance cameras, it enables clear detection of heat-emitting organisms at night, offering superior visibility in low-light conditions.
Diverse Applications：The system supports a wide range of uses, including single-person handheld thermal imagers, handheld thermometers, automotive external thermal imaging, infrared helmets, and UAVs, providing versatile solutions for multiple scenarios.

Overview
*KC 256192 Resolution 4mm Focal length**
Resolution	256*192
Focal length	4MM
Detector type	Vanadium oxide uncooled infrared focal plane detector
Frame rate	25fps
Pixel spacing	12μm
NETD	40mk
Response band	8～14μm
Optical parameters
Lens specifications	4.0mm F1.0
*FOV（HV）**	4mm：26°* 20°
Application functions
Imaging/no temperature measurement	imaging
Other parameters
Pseudo color	White-hot
Supply voltage	4.5-18V
Type of output	Different
Module volume (excluding lenses)	21*21
Weight (excluding lens)	<8 g
Working temperature	-40℃ – +80℃
Storage temperature	-45℃ – +85℃
